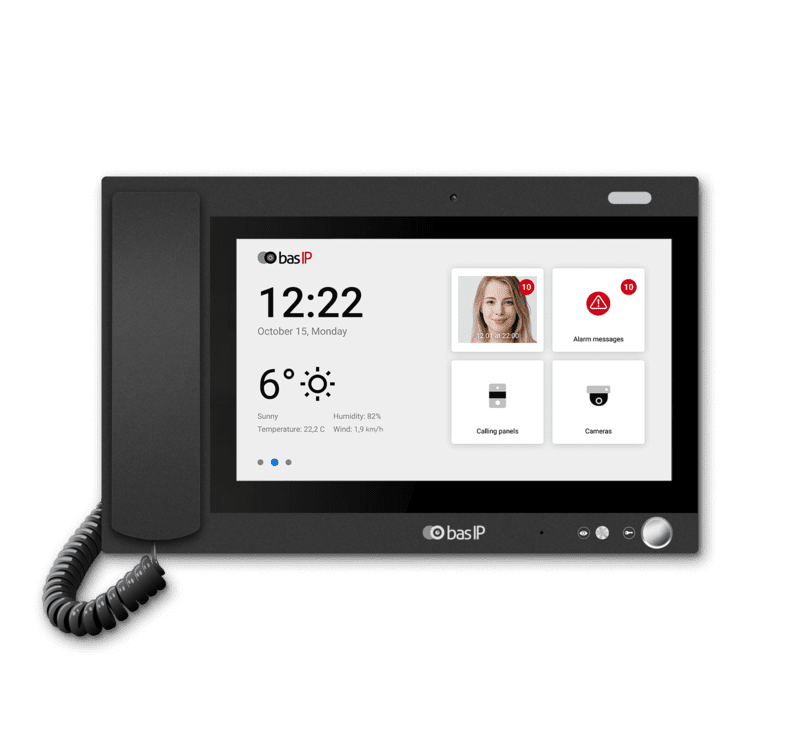

Video Guard Station / Concierge Terminal

High-tech device used in apartment buildings, gated communities, and other residential or commercial settings to improve security and communication.

10.1" TFT LCD, touch; table installation; intercom with all monitors in the system; SIP P2P; GUI, web interface; internal memory for 100 photo frames, recording video and audio; receives alarm messages from monitors; support up to 100 IP cameras, tour and quad splitter modes; receive firmware updates from the cloud.
Add to Cart
Product Details

Video Guard Station (or Concierge terminal) is designed for convenient organization of communication with the whole system, with internal monitors, outside panels, receiving messages from the internal monitors and conducting confidential communication with visitors using the handset.

Main features:
• Notebook;
• Install third-party applications;
• Select the type of screen saver in standby mode (“Tour”, “Quad”);
• Flexible customization of the appearance of the main screen by the user;
• Simple contact search system and the ability to connect to any BAS-IP device;
• Receive firmware updates directly from the server.


Display: 10.1” TFT LCD, touch screen
Power supply: PoE + 12 V DC
Dimensions: 303×194×64 mm
Installation: Desktop installation
Number of control buttons: 2
Lock control: Yes
Operating Humidity: 20% – 80%
Operating temperature: -10 – +55 °С
Box dimensions: 344×335.5×75 mm
Gross weight: 2,02 kg
Number of IP cameras: Up to 1000
VoIP account support: 1
Network connection: Ethernet10/Base100-T, RJ-45
Internet protocol: IPv4
• G.711
• H.264
• 6 volume levels
• “Silent” mode
• Do Not Disturb mode
• SIP 2.0 protocol support
