$989.00
Out of stock Out of stock
DNAKE S617 Smart Intercom System

Experience seamless entry control with the DNAKE S617 — featuring a vibrant 8" touchscreen, advanced facial recognition, weather-resistant design, and cloud-based management. Powered via PoE or 12V and designed for surface or flush mounting, it’s the ideal solution for modern smart buildings.
Installation
Quantity
Add to Cart
Product Details
Specifications

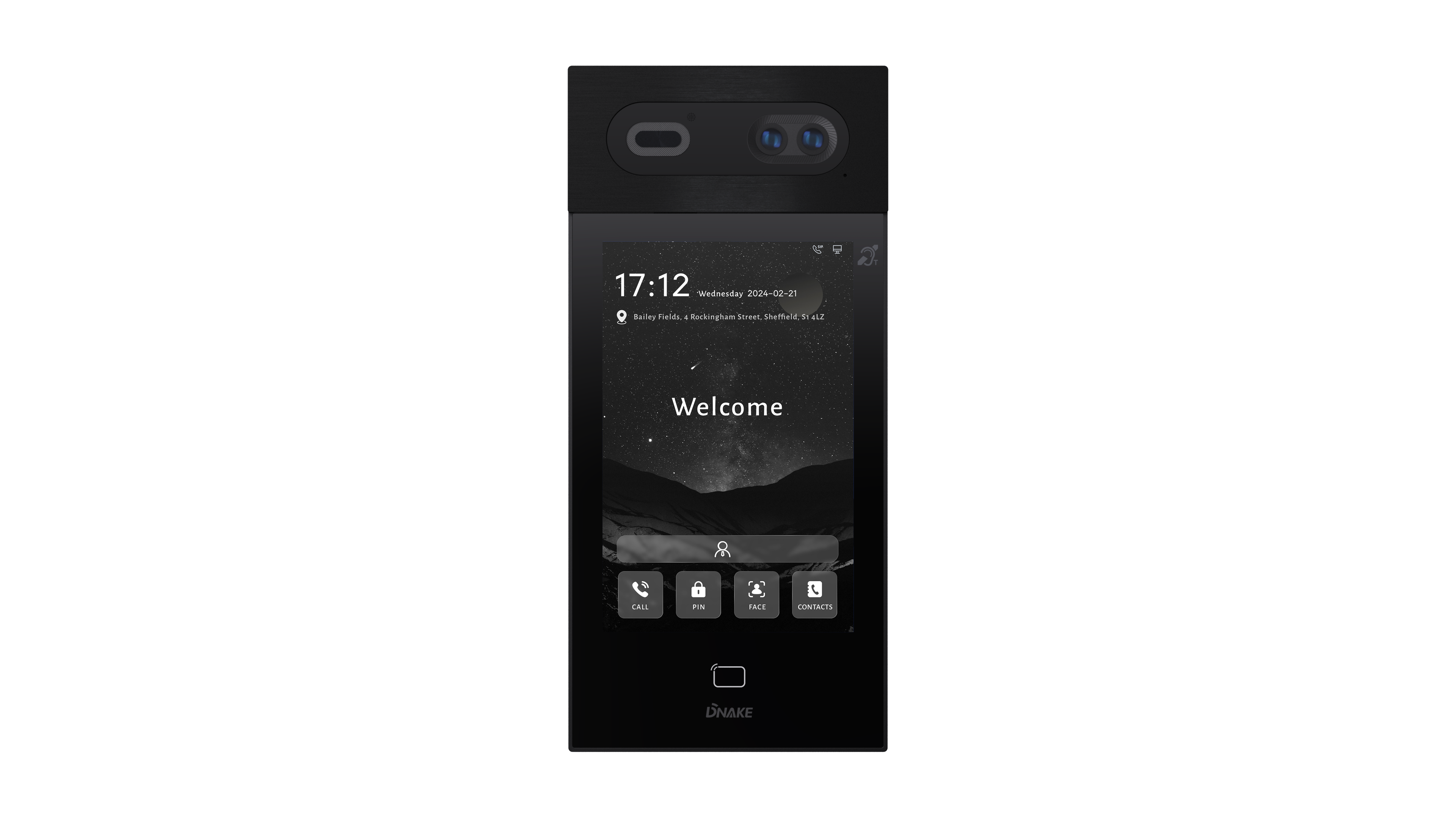

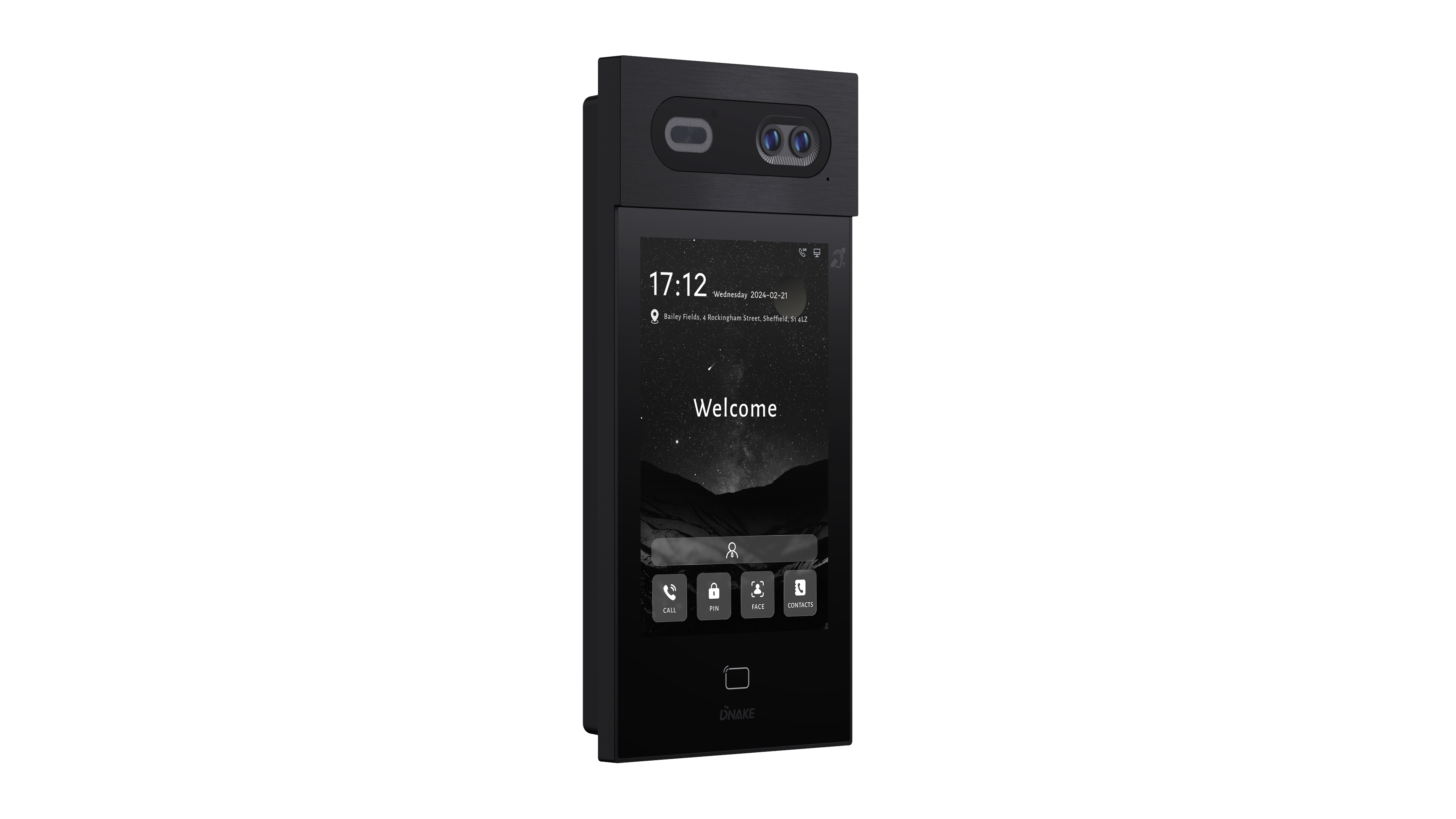

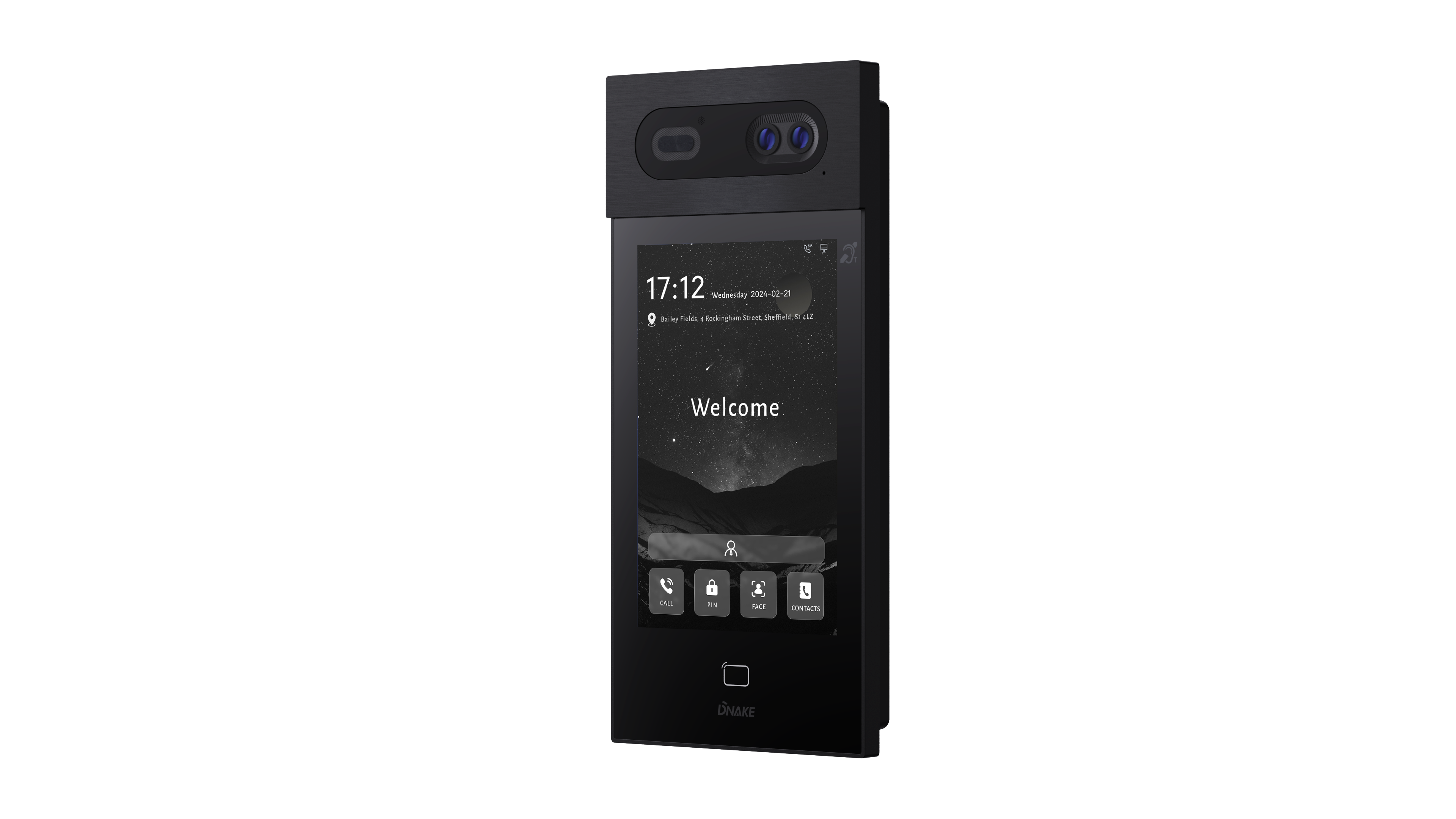

DNAKE S617 Smart Intercom System
Elevate your access control with the DNAKE S617 — a sleek, surface-mounted intercom system featuring an 8” IPS LCD capacitive touchscreen, facial recognition, and cloud-based functionality. Built for durability and performance, it’s weatherproof and powered via PoE or 12V, making it a reliable solution for modern security needs.

This versatile unit enhances user experience across a wide range of applications:

  • Residential Complexes & Gated Communities: Streamlines visitor access and resident communication.

  • Commercial Offices: Manages secure entry and improves visitor flow in reception areas.

  • Government Buildings: Delivers secure and stable video communication for high-security facilities.

  • Retail Environments: Functions as a smart kiosk or digital signage for interactive customer engagement.

  • Private Residences: Adds a touch of luxury and security to high-end homes and estates.

Whether for residential or commercial settings, the DNAKE S617 blends technology and design to provide a smarter, safer entry solution.

Key Features
  • Camera
    Dual HD cameras at 2MP resolution
  • View Angle
    Wide 120
  • Door entry methods
    Call, Face ID, PIN code, APP, Blutooth, Reader
  • Reader
    IC card (13.56MHz), ID card (125MHz)
  • Users supports
    20,000 users, 20,000 face id, and 60,000 cards

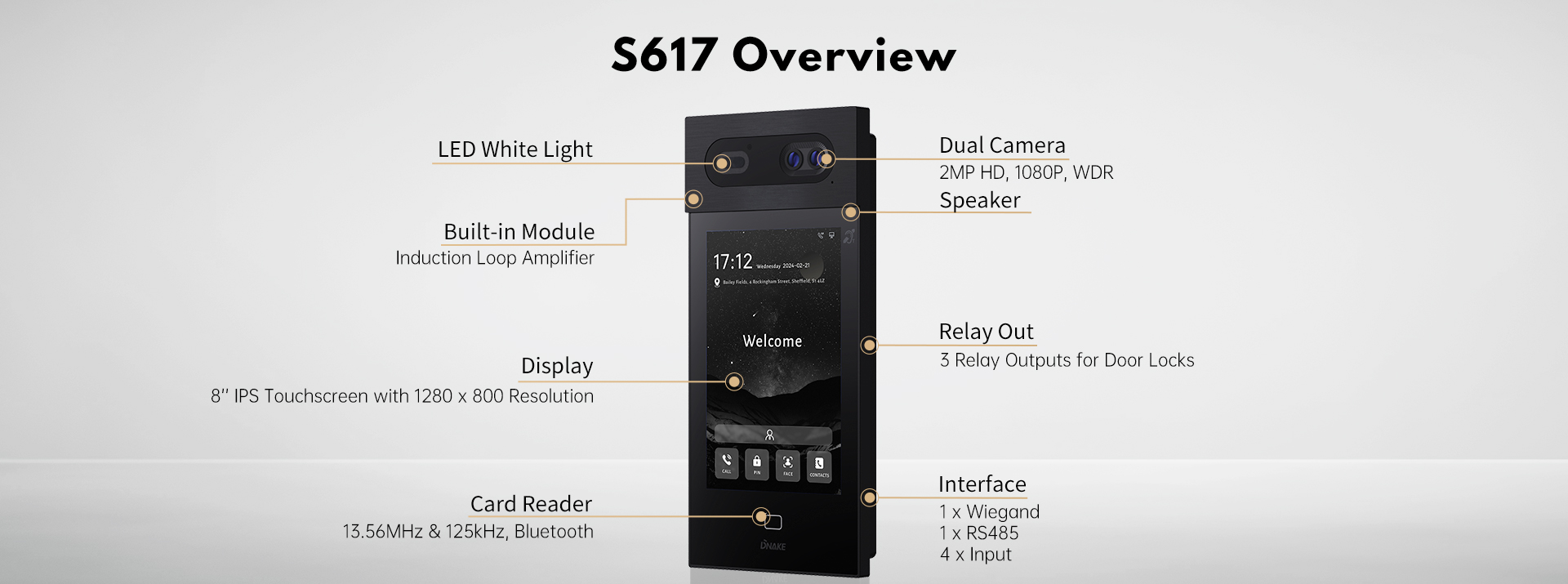

General | Physical
  • Model Number
    S617
  • Touch Screen
    Yes
  • Display Size
    8"
  • Operating System
    Android
  • RAM
    2 GB
  • ROM
    8 GB
  • Front Panel
    Aluminum
  • Power Supply
    PoE+(802.3at) or DC
  • Camera
    2MP, CMOS, WDR
  • Wiegand Port
    Support
  • RS485 Port
    1
  • Enthernet Port
    1 x Rj45, 10/100 Mbps adaptive
  • Relay Out
    3
  • IP/IK Rating
    IP65, IK08
  • Installation
    Surface or flush Mounting
  • Working Temperature
    -40C to + 55C
Video
  • Video Codec
    H.264
  • Video Resolution
    up to 1920 x 1080
  • Viewing Angle
    120°(H) / 75°(V) / 131°(D)
  • Max. Image Transfer Rate
    1080p – 25fps
  • Light Compensation
    LED white light
Dispaly

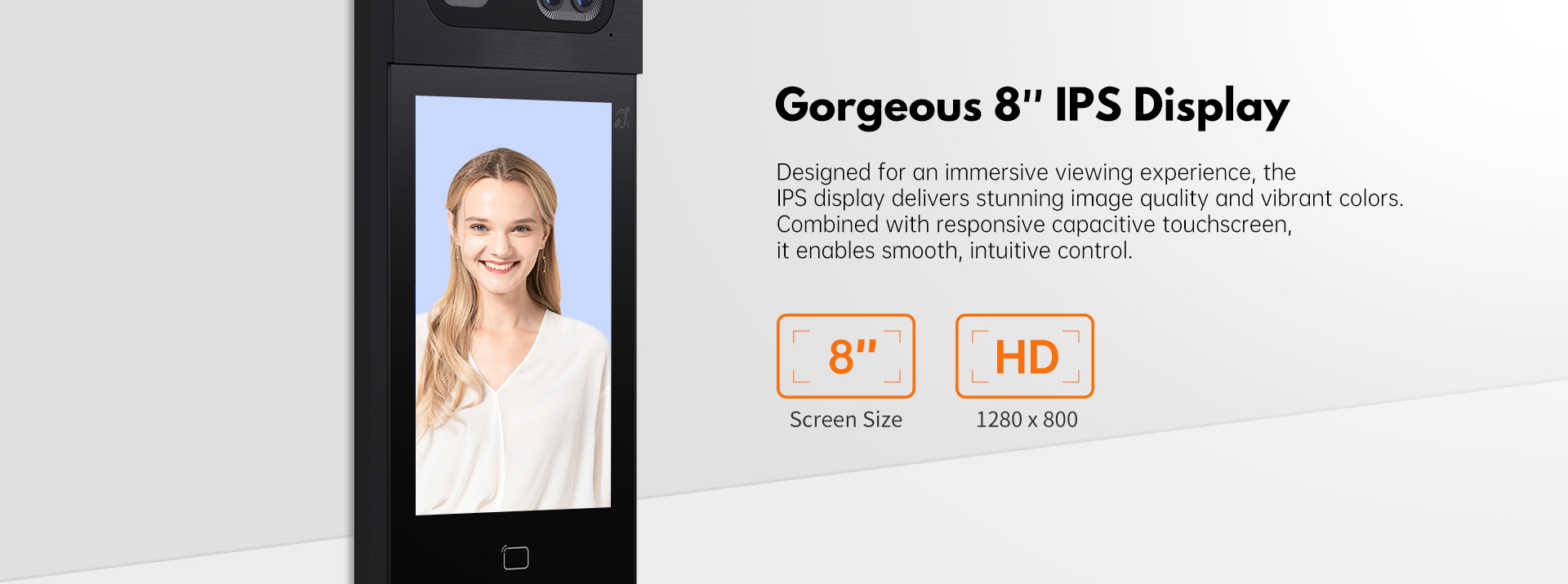

  • Display
    8-inch IPS LCD
  • Resolution
    1280 x 800
Audio
  • Audio Codec
    G.711
  • DTMF
    RFC2833
  • Microphone
    Built-in microphone
  • Speaker
    8Ω / 1W
Networking
  • Protocol
    ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
