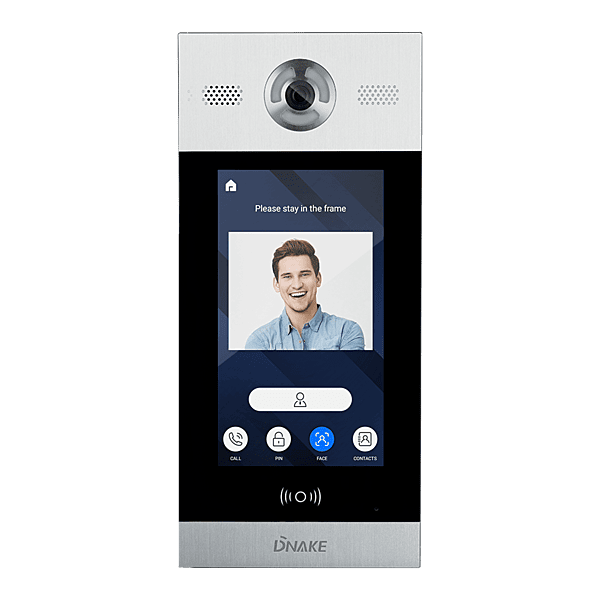

DNAKE 902D - B6
The DNAKE 902D-B6 is a premium Android-based SIP video door station designed for modern residential and commercial access control applications. Featuring a large 10.1-inch capacitive touchscreen, it provides an intuitive user experience while combining video intercom, access control, and smart building integration.
Equipped with a 2MP WDR camera, the 902D-B6 delivers clear visitor identification with enhanced image quality in different lighting conditions. Advanced face recognition with liveness detection provides secure touchless entry, while additional access options include IC cards, PIN codes, NFC, and mobile applications.
Supporting SIP 2.0 protocol, the device easily integrates with other SIP-compatible systems, indoor monitors, and security platforms. With PoE power support, Wiegand connection, RS485 interface, relay output, and elevator control integration, the DNAKE 902D-B6 is an ideal solution for apartments, gated communities, offices, and smart buildings.
Its durable aluminum design, IP65 protection, and powerful access management features make it a reliable and future-ready video intercom solution.
Key Features
- Camera2 MP CMOS Camera with WDR
- View Angle100° Diagonal
- Door entry methodsFace Recognition IC Card (13.56 MHz) PIN Code NFC Mobile App Indoor Monitor-Unlock
- ReaderIC card (13.56MHz), ID card (125MHz)
- Users supportsFace Recognition:Up to 10000 users-IC-Cards:Up to 100000 users
General | Physical
- Touch ScreenYes
- Display Size10.1" Capacitive Touch Screen
- Operating SystemAndroid
- RAM512 MB
- ROM8 GB
- Front PanelAluminum
- Power SupplyPoE IEEE 802.3af DC 12V / 2A
- Camera2 MP CMOS Camera with WDR
- Wiegand PortSupport
- RS485 Port1
- Enthernet Port1 x Rj45, 10/100 Mbps adaptive
- Relay Out1
- IP/IK RatingIP65, IK08
- InstallationFlush Mounting
- Working Temperature-20°C to +55°C
Video
- Video CodecH.264
- Video ResolutionUp to 1920 × 1080 (Full HD)
- Viewing Angle100° Diagonal
- Max. Image Transfer RateNetwork dependent
- Light CompensationWDR + LED White Light Compensation
Dispaly
- Display10.1" TFT LCD Capacitive Touch Display
- Resolution1024 × 600
Audio
- Audio CodecG.711
- DTMFSupported
- MicrophoneBuilt-in microphone
- SpeakerBuilt-in speaker
Networking
- ProtocolSIP2.0 UDP TCP RTP RTSP NTP DNS HTTP DHCP IPv4 ARP ICMP
