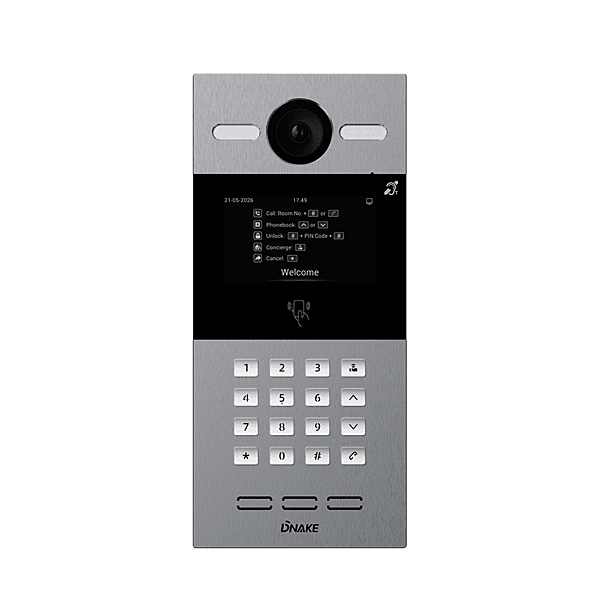

Dnake S405
Non-returnable
$922.00
Tags:
2-WIRE 4.3” Android Door Station
• 4.3’’ color TFT LCD
• Powered by 2-wire BUS
• 120° wide-angle 2MP HD camera with WDR mode
• Lock Control: 2 relays out(NO NC COM, 2A), 1 electronic lock(12V, 800mA)
• Induction loop for the hearing impaired and braille dot for the visually impaired
• Door entry: Call, Face, IC card (13.56MHz), ID card (125kHz), PIN code, APP, QR code
• Secured access with encrypted card (MIFARE Plus SL1/SL3 card)
• Anti-spoofing algorithm against photos and videos
• Support 20,000 users, 20,000 faces, and 60,000 cards
• Installer-friendly configuration by DIP Switch and Mobile WEB
• Tamper alarm
Specifications
Key Features
- Camera2 MP CMOS Camera with WDR
- View AngleWide 120
- Door entry methodsCall, Face ID, PIN code, APP, Blutooth, Reader
- ReaderIC card (13.56MHz), ID card (125MHz)
- Users supports20,000 users, 20,000 face id, and 60,000 cards
General | Physical
- Touch ScreenNo
- Display Size4.3’’ TFT
- Operating SystemAndroid
- ROM8 GB
- Front PanelAluminum
- Camera2MP, CMOS, WDR
- RS485 Port1
- Relay Out2
- IP/IK RatingIP65/IK07
- InstallationSurface or flush Mounting
- Working Temperature-40C to + 55C
Video
- Video CodecH.264
- Video Resolution1920 × 1080 (1080p)
- Viewing Angle120°(H) / 75°(V) / 131°(D)
- Max. Image Transfer Rate1080p – 25fps
- Light CompensationWDR + LED White Light Compensation
Dispaly
- ResolutionNot applicable
Audio
- Audio CodecG.711
- DTMFRFC2833
- MicrophoneBuilt-in microphone
- Speaker8Ω / 1W
Networking
- ProtocolONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
