AV-04SD
$482.00
Tags:

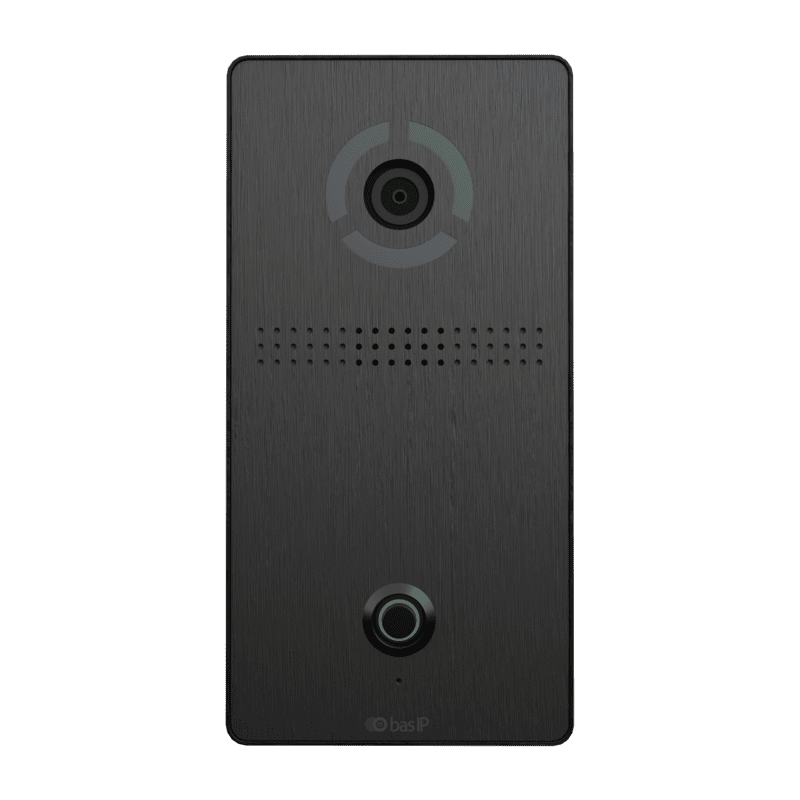

The AV-04SD individual entrance panels are reliable and vandal-proof with wall mounting installation. Each panel provides a perfect video image and sound transmission to the internal monitors. There is the option to individually engrave some text or logo on the panels.
The AV-04SD belongs to a group of panels that are wall mounted. It means that there is no need to make a hole in the wall or the frame of the entry group. This panel is quite narrow to fit in the entry group that has been already mounted in the residential complex or office block.
Today, individualization is a frequent requirement for large facilities. These outdoor panels include spaces for individual engraving. When installed in a shopping mall, these panels can be signed “INFO CALL”.
The AV-04SD belongs to a group of panels that are wall mounted. It means that there is no need to make a hole in the wall or the frame of the entry group. This panel is quite narrow to fit in the entry group that has been already mounted in the residential complex or office block.
Today, individualization is a frequent requirement for large facilities. These outdoor panels include spaces for individual engraving. When installed in a shopping mall, these panels can be signed “INFO CALL”.
Product Details
Main features
Panel type: Individual
Camera: 1/4”
Angle: 100° (horizontal)
Resolution: 2,0 Мp
Output video: 720p (1280×720), H.264 Main Profile
Night backlight: 6 LEDs
Light sensitivity: 0.01 Lux
IK-Code: IK09
Protection class: IP64
Working temperature: -40 – +65 °С
Operating humidity: 0% – 89%
Storage Humidity: 0% – 60%
Power consumption: 6.5 W, in standby – 2.5 W
Power supply: PoE, +12 V DC (+12% -6%)
Case: Aluminum
Call button: Mechanical
Colours: Silver
Size (with bracket): 84×170×31 mm
Box dimensions: 220×116×65 mm
Gross weight: 0.69 kg
Installation type: Wall mounting
Interface: Multilanguage, WEB-interface
Lock opening: By means of a monitor; By QR code; By guest link; From the BAS-IP Intercom app; From API
Integration with ACS: Input WIEGAND-26
Authentication: WEB-interface and RTSP stream
Additionally: Built-in relay; Software Link support; SIP P2P; Open API
