AV-06M
$342.00
Tags:

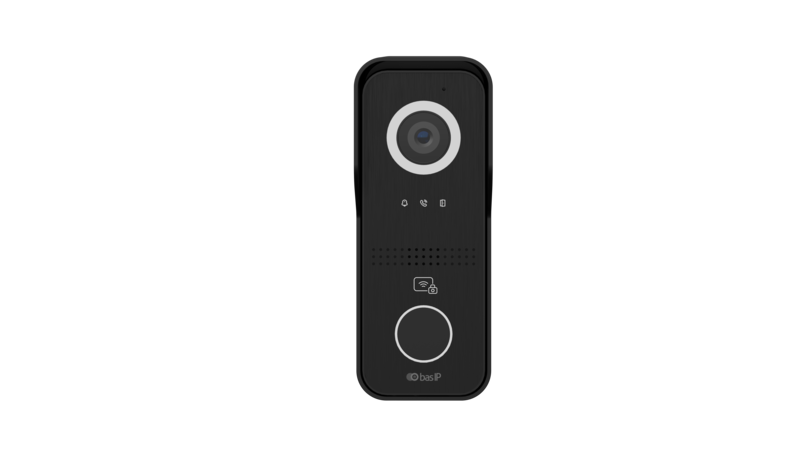

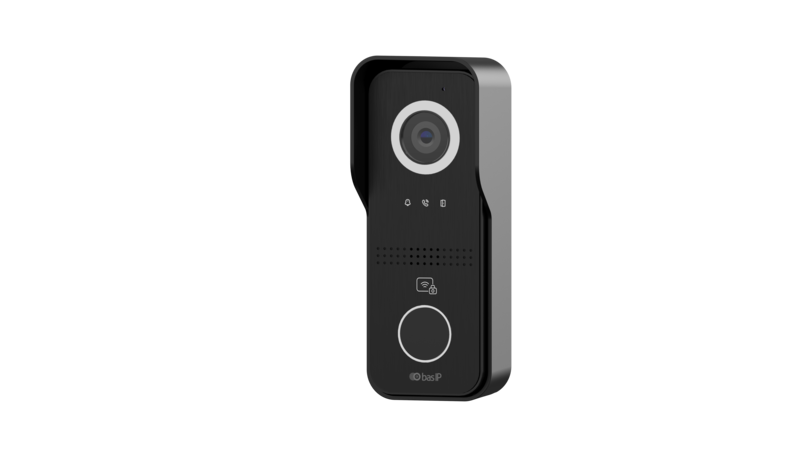

The BAS-IP AV-06M is a sleek and compact single-button entrance panel designed for seamless video calling at villa entrances or front doors. Despite its slim profile, this panel is packed with advanced features, including door access via card, QR code, mobile app, or remote control from an indoor monitor.
For added convenience, the panel includes additional mounting accessories such as a plastic Sun & Rain Cover and a 30-degree Rotating Bracket.
Product Details
Main Features
- Panel type: Individual.
- Night backlight: 12 LEDs.
- Light sensitivity: 0.01 LuX.
- Protection class: IP65.
- IK-Code: IK06.
- Working temperature: -40 — +65 °С.
- Power consumption: 5.5 W, in standby — 2.1 W.
- Supported Сards: Mifare® Ultralight, Ultralight EV1, Light ID, Standard, Classic (1K/4K), Classic EV1 (1K/4K), DESFire Light (UID 4 bytes), DESFire EV1 (UID 4 bytes), NFC ISO 14443.
- Wi-Fi: 2.4GHz (IEEE 802.11 n).
- Power supply: +12V DC, IEEE PoE 802.3af.
- Memory card support: MicroSD up to 32GB.
- Body: Plastic.
- Colors: Black.
- Size of the panel: 52 × 137 × 28 mm.
- Installation: Surface Mounting with or without Sun & Rain Сover (Included).
- Additional accessories: Rotating Bracket 30-degree (included).
Funcitonal capabilities
- Interface: Multi-language graphical and WEB interface
- Opening the lock: From the monitor, by QR code, by guest link, by license plate, by access card, by exit button, from the BAS-IP Intercom app, from the BAS-IP Link app, from the API.
- Identifiers in the panel memory (QR codes, cards, key fobs, UKEY, access codes): 20 000
- Integration with ACS: Wiegand
- Built-in Wiegand output for card, key fob, and UKEY identifiers: 26, 34, 58 bits
- Connection of the additional SH-12 module and its support:
- Wiegand input: 26, 34, 58 bits
- Wiegand output for card, key fob, and all other types of identifiers: 26, 34 и 58 bits inclusive.
- Shortcut buttons: 1 mechanical call button
- Number of call melodies: 4 polyphonic melodies
- Authentication: Separate password for settings, WEB – interface and RTSP stream
- Additionally: Software Link support, SIP P2P, Built-in relay, Open API
