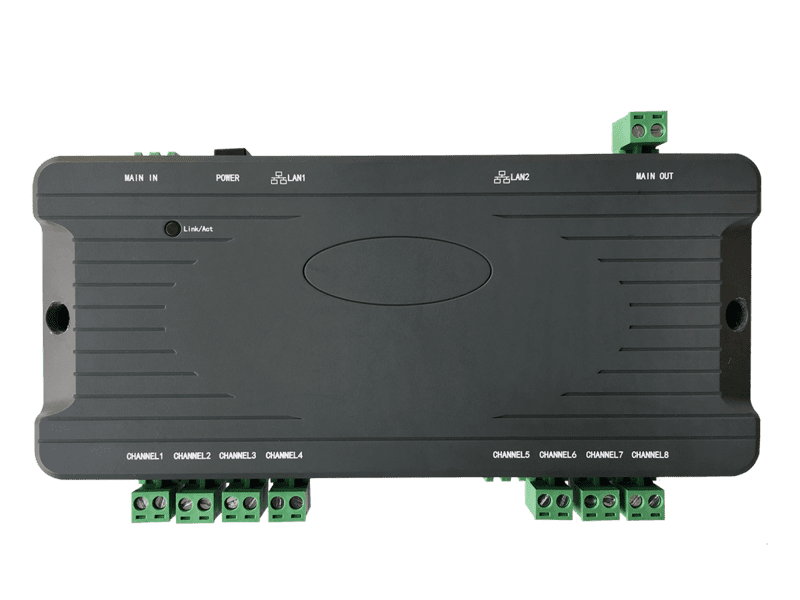

SW-10
$194.00
Tags:
Ability to connect up to 8 internal monitors (with SW-02 converter) and up to 4 converters via 2 wires. Up to 1249 converters (SW 08/SW-10) via Ethernet (with the total number of users - 9999). Rated power 4,5W. Power supply - 48 Volts DC. Cable length: 50 meters max with 2 wires, 100 meters max with Ethernet cable (UTP cat 5,6).
Product Details
Power supply: 48 V DC (PoE)
Power consumption: 1 W in standby mode, 7 W in operation
Connection: Two-wire, Ethernet UTP CAT 5
The maximum number of devices in the system: 9999
Maximum cable length over two wires: 50 meters between two devices
Maximum Ethernet cable length: 100 meters
Box dimensions: 239×212×70 mm
Gross weight: 1.02 kg
