OQ-01 (OBELISK)
$11,400.00
Tags:

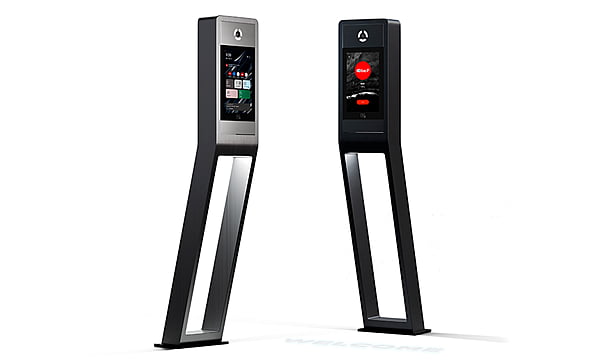

The OQ-01 BAS-IP Parking Access Terminal is a compact vehicle access control solution featuring a 10" IPS touchscreen, durable stainless steel construction, and an integrated floor projector. Designed for secure and efficient parking management, it delivers reliable performance in both indoor and outdoor environments. Parking Access Terminal, Vehicle Access Control, Smart Parking System, 10" IPS Touchscreen, Stainless Steel Terminal, Parking Management, Access Control, Outdoor Terminal, BAS-IP.
Specifications
Key Features
- CameraDual HD cameras at 2MP resolution
- View AngleWide 110
- Door entry methodsFace Recognition PINCode Access-Card QR -Code BAS-IP UKEY Mobile -Access Mobile-App Guest-Link License-Plate (system dependent) API-Integration Monitor-Unlock Concierge-Call
- Users supportsUp to 10000 face recognition users Up to 30000 total identifiers (cards QR UKEY codes mobile credentials)
General | Physical
- Touch ScreenYes
- Display Size10-inch high-resolution IPS display
- Operating SystemLinux
- Power Supply12V/3A DC
- CameraIntegrated HD IP surveillance camera
- Wiegand PortSupport
- RS485 PortSupported
- Enthernet PortRJ45 10/100 Mbps Ethernet
- Relay OutBuilt-in relay for door / gate control
- IP/IK RatingIP65/IK07
- InstallationFloor-mounted intercom column (outdoor / indoor architectural pedestal installation)
- Working Temperature-40°C to +65°C
Video
- Video Resolution1920 × 1080 (1080p)
- Viewing Angle110° wide-angle camera system
- Max. Image Transfer RateUp to 25–30 fps (network dependent)
- Light CompensationLow-light optimized camera
Dispaly
- Display10” IPS Touch Display
- ResolutionHigh-resolution HD UI (system controlled interface)
Audio
- Audio CodecG.711 / G.729 (SIP based communication)
- DTMFSupported
- MicrophoneBuilt-in noise reduction microphone
- SpeakerBuilt-in high-power speaker for outdoor use
Networking
- ProtocolSIP 2.0 ONVIF Profile S TCP/IP RTSP HTTP/HTTPS Open API support
