$5,000.00
Out of stock Out of stock

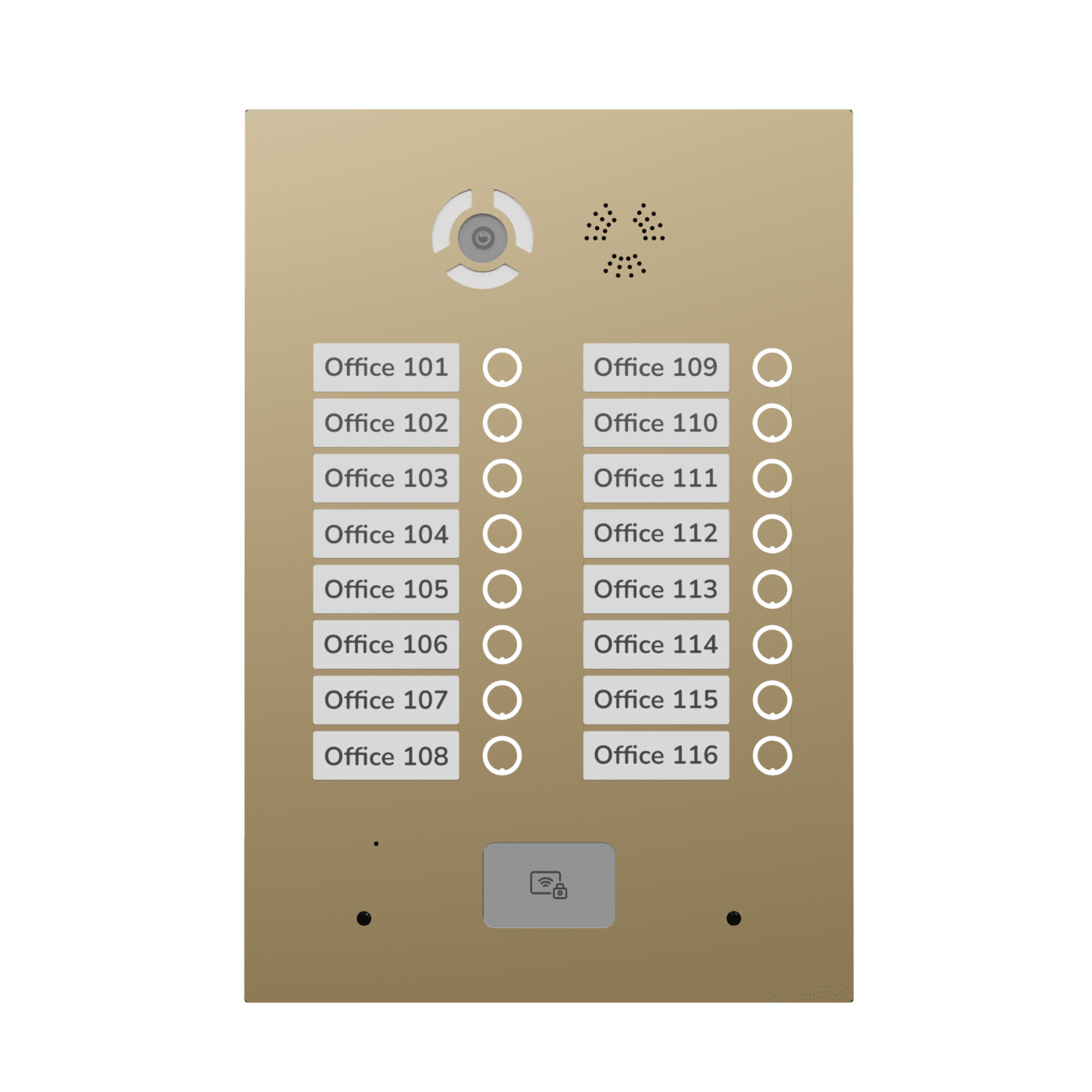

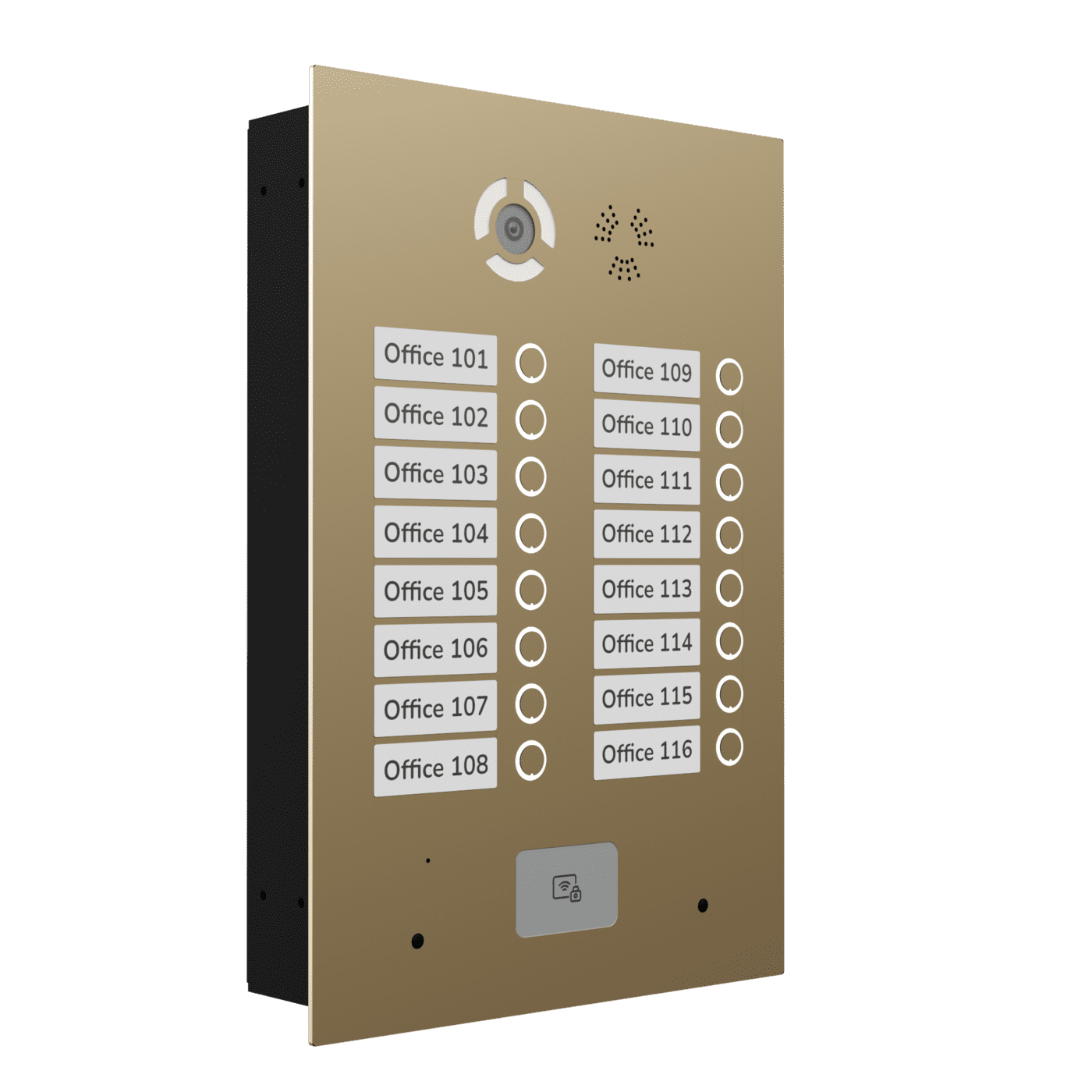

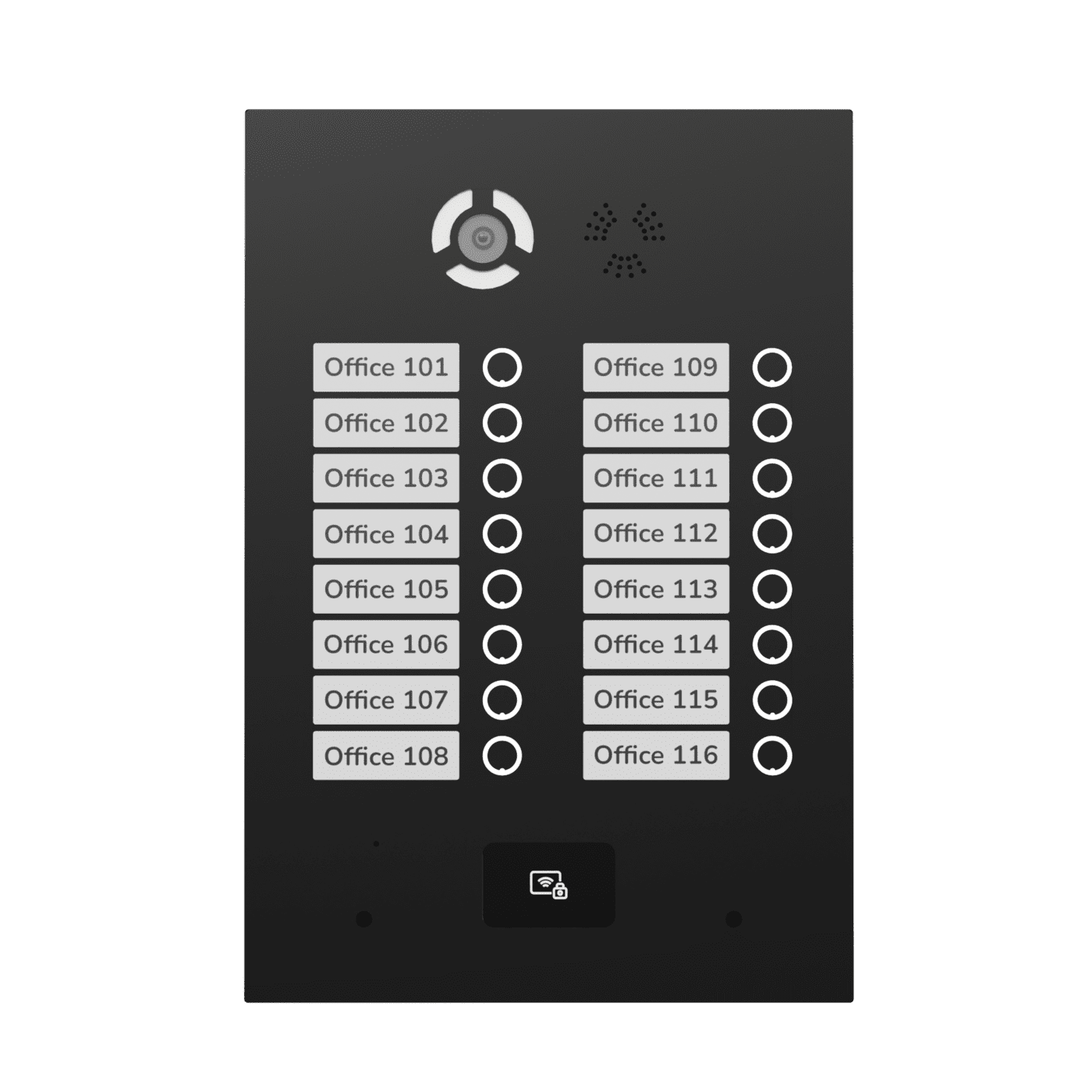

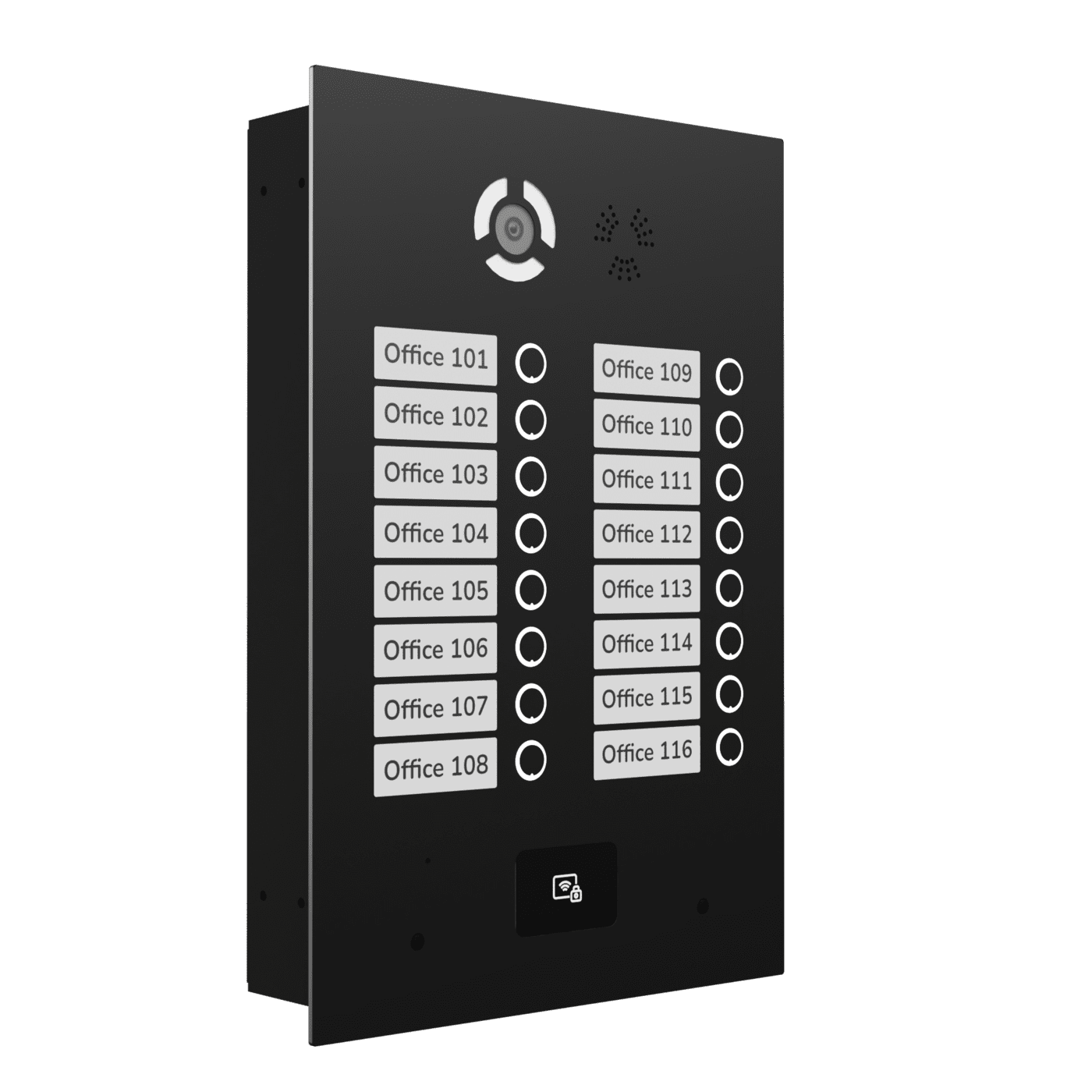

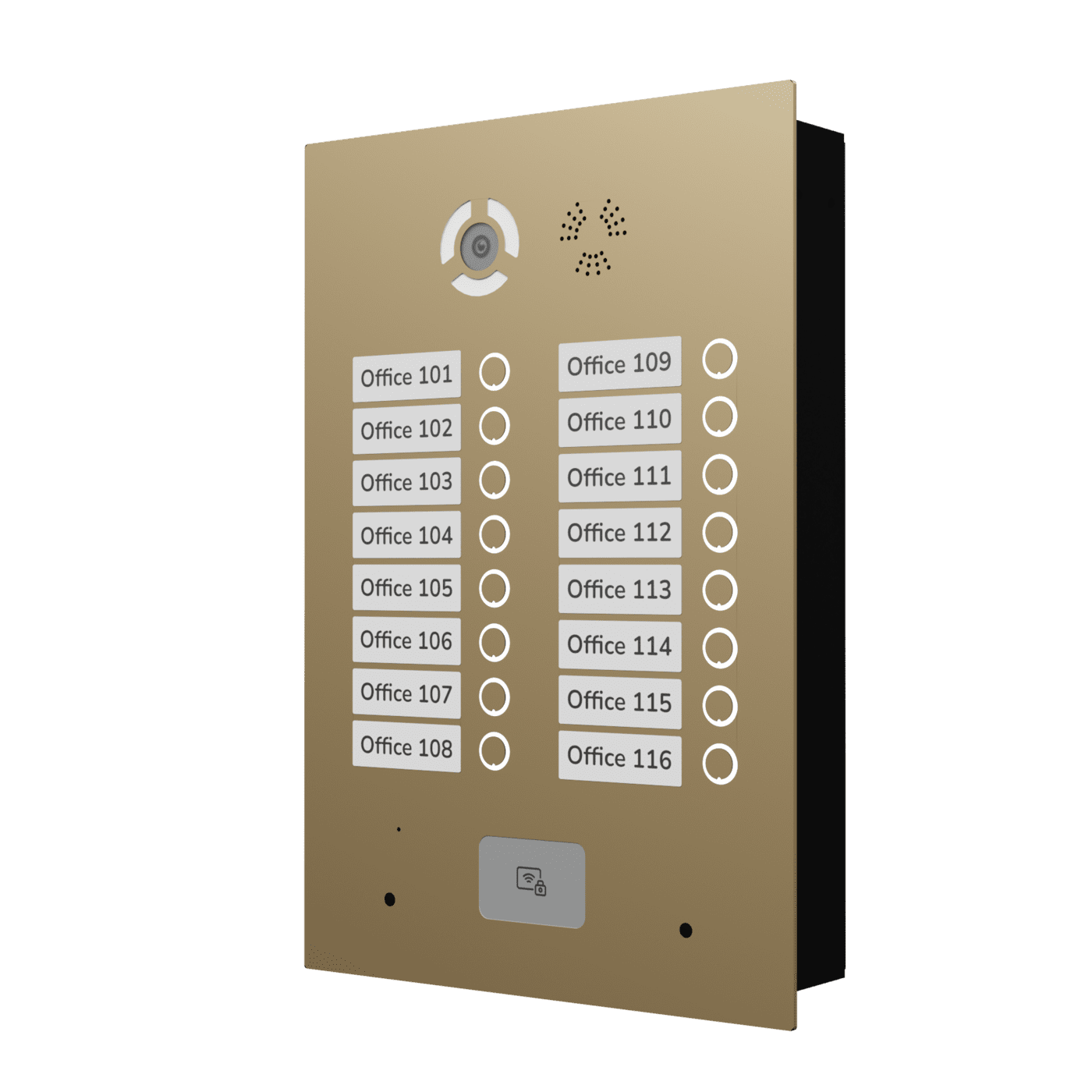

Sophisticated Entry Panel with Multiple Buttons for a Maximum of 128 Residences

The BI-Custom entry panel is customizable to accommodate between 2 and 128 apartments, offering a one-of-a-kind opportunity to tailor the panel to your specific needs.

This exceptional multi-residential entry panel distinguishes itself with its elegant appearance.
Color
Quantity
Add to Cart
Product Details

The distinct multi-residential entry panel boasts an elegant design.

The BI-Custom entry panel is customizable to accommodate between 2 and 128 apartments, offering a one-of-a-kind opportunity to tailor the panel to your specific needs.

Equipped with a UKEY reader and facial recognition capability, the panel utilizes multiple infrared sensors and in-depth analysis for accurate identification.

Upon recognizing tenants and frequent visitors, the entry panel can automatically unlock while delivering vital messages or helpful information about the residential complex.

The panel is compatible with the Link platform.

Specitications:

Panel type: Multi-button (up to 128)
Resolution: 2,0 Мp
Сamera angle: 110° (horizontal)
Output video:HD (1280×720), H.264 Main Profile
Night backlight: 6 LEDs
Light sensitivity: 0.01 Lux
IK-Code: IK08
Protection class: IP65
Working temperature: -40 – +65 °С
Operating humidity: 0% – 86%
Storage Humidity: 0% – 60%
Power consumption: 6,5 W, in standby – 3,6 W
Power supply: +12 V DC (+8% -4%)
Case: Aluminum
Colors: Black, Brass
Dimensions: 377×257×49 mm (for 16 subscribers)

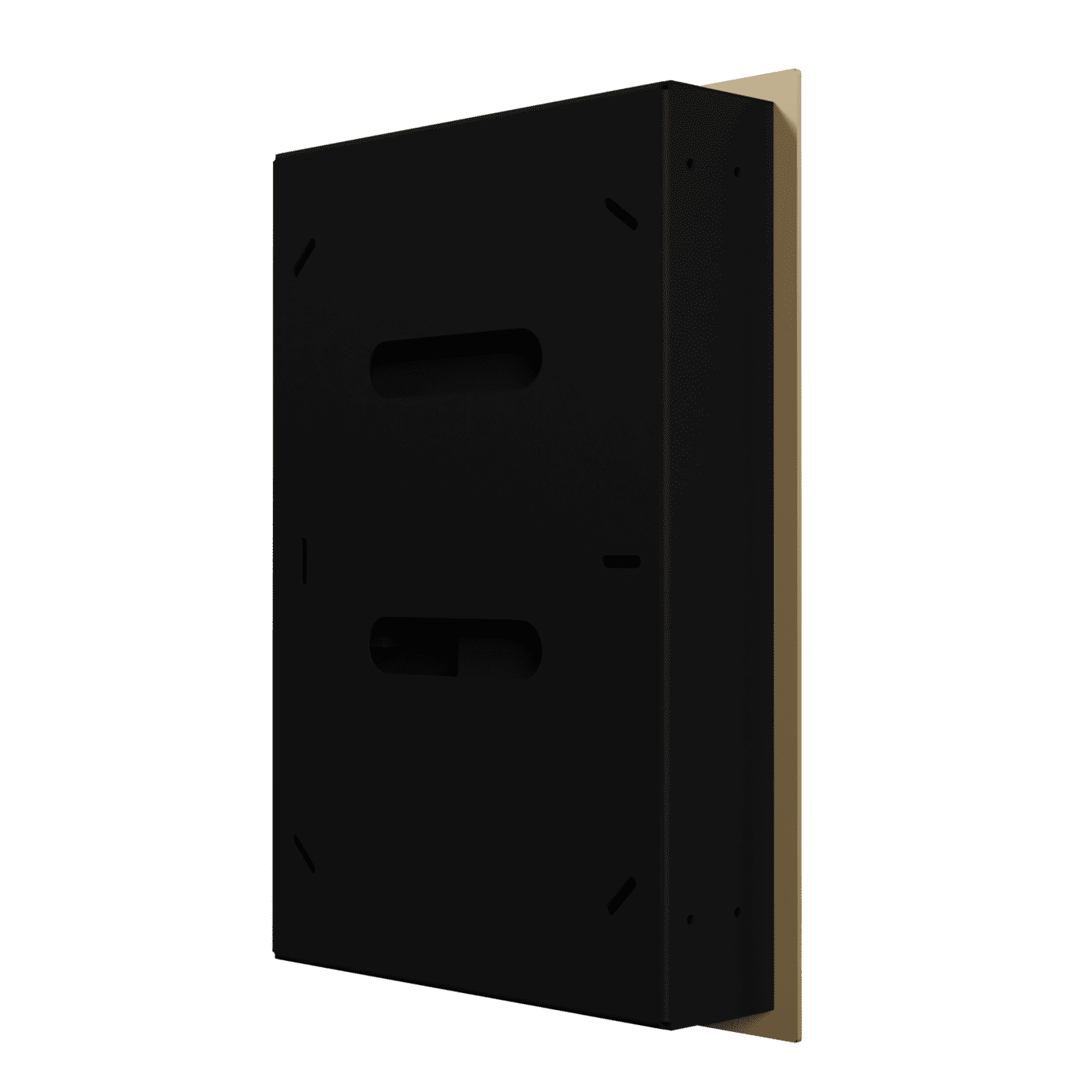

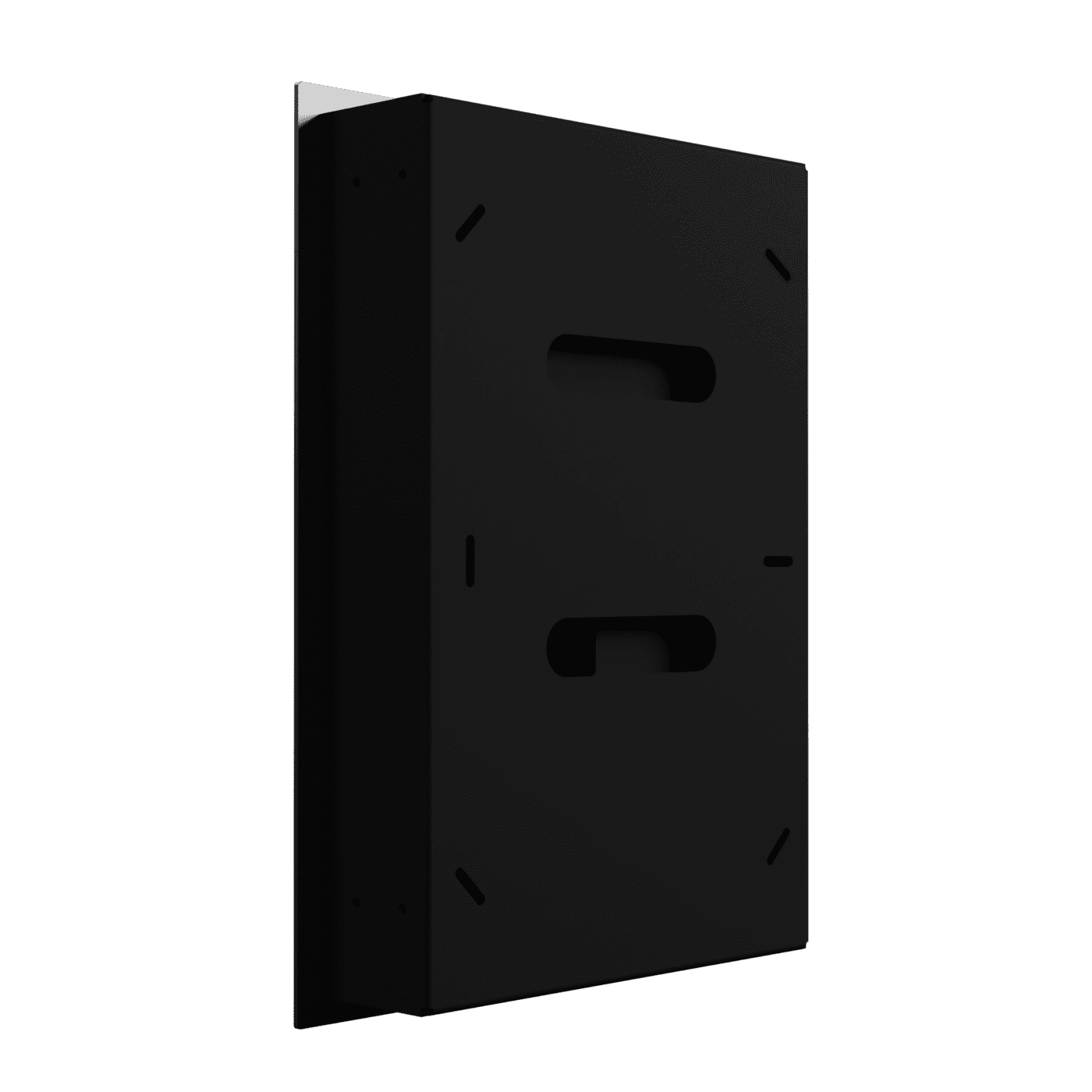

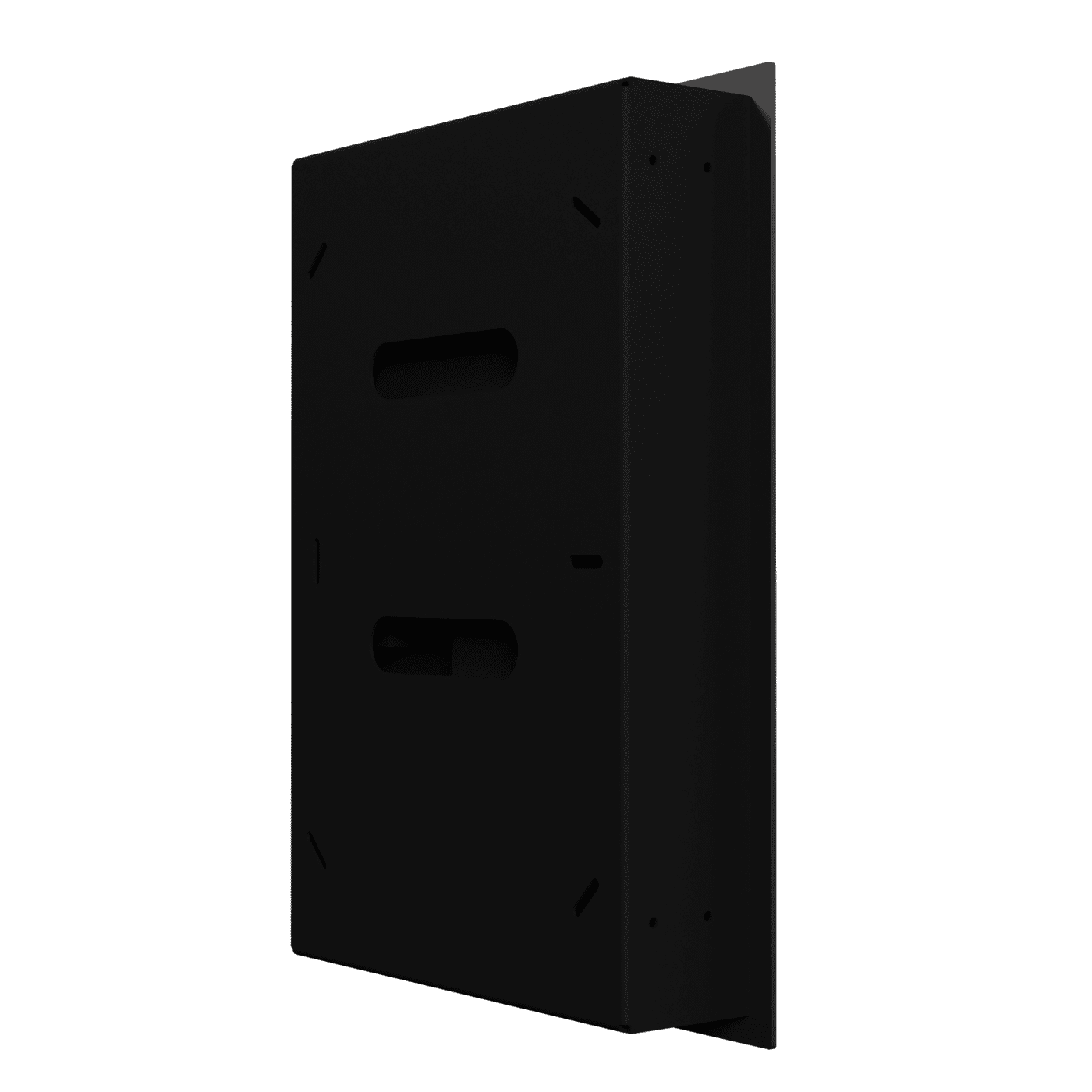

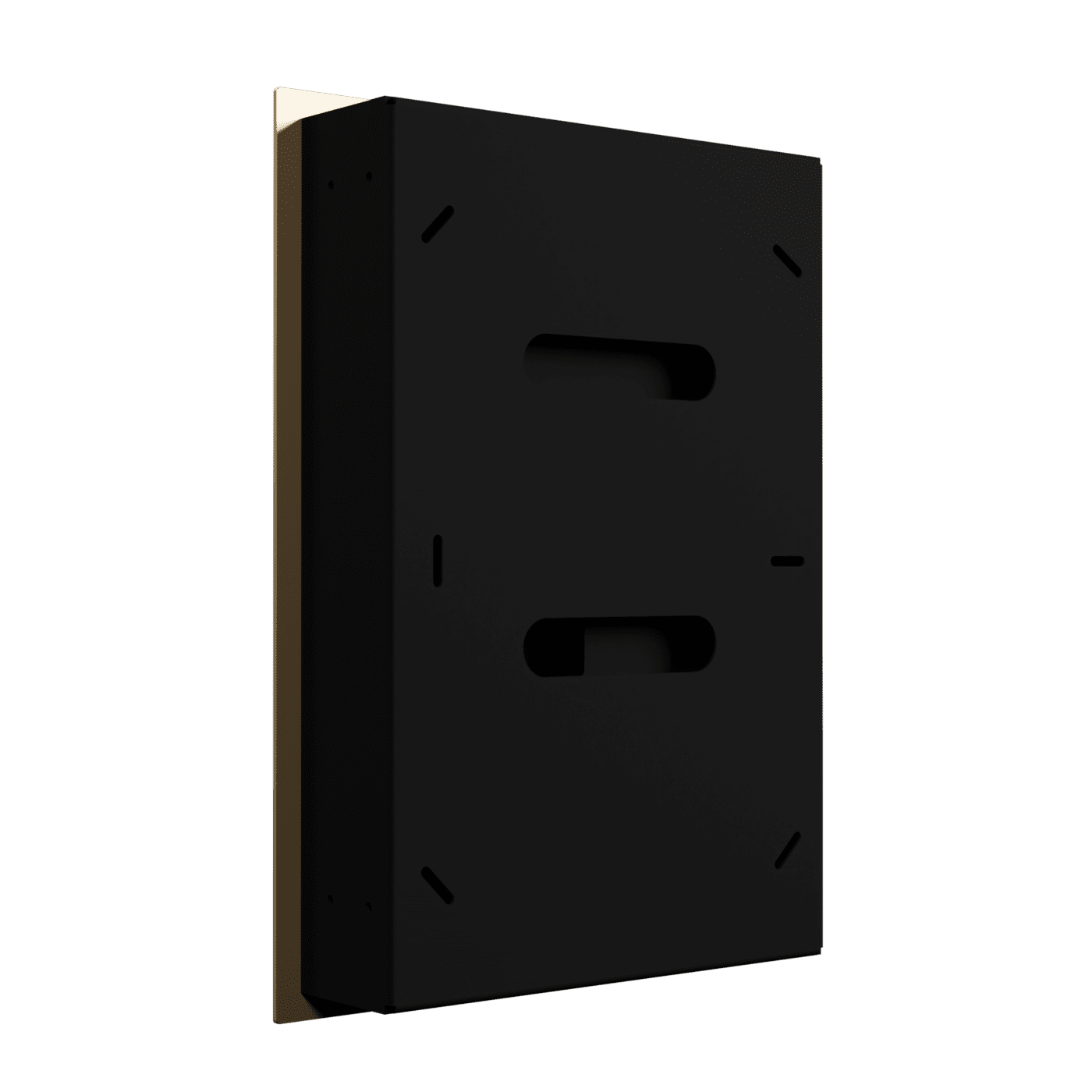

Installation: Flush mounting
Keyboard: Mechanical buttons with backlight
Interface: Multilanguage, WEB- interface
Lock opening:
• By means of a monitor
• Face Recognition Identification
• By QR code
• By guest link
• By access card and key fobs
• By license plates
• The BAS-IP Link app
• The BAS-IP Intercom app
• The BAS-IP UKEY app
• From API
Access control:
• Face Recognition
• UKEY (EM-Marin/ MIFARE®/NFC/Bluetooth)
• Multi-factor authentication
Supported standards:
• BLE (Bluetooth Low Energy): 2,45 GHz Bluetooth 4.x, Bluetooth 5.x.
• Mifare®, 13,56 MHz ISO14443A: Mifare®Standard, Mifare®Hi-Memory, Mifare®Ultralight, Mifare®Classic 1K/4K, Mifare®Classic 7UID, Mifare® Plus SL1 and SL3
• NFC, 13,56 MHz: ISO 14443/15693
• Cards 125 kHz: ASK and FSK
Reading range:
• NFC, Mifare cards and 125 kHz cards – up to 5 cm
• BLE – adjustable 10 cm – 10 m
Calling the lift to the floor: Yes
Face recognition Identifiers: 10 000 faces
Identifiers in the panel memory: 20 000
Onvif (Profile S): Yes
Integration with ACS: Output WIEGAND-26
Supported Wiegand types: 26, 32, 34, 37, 40, 42, 56, 58, 64
Quick-dial buttons: Concierge call button
Number of ringtones: 4 polyphonic ringtones
Authentication:
• Separate password for settings
• WEB-interface
Additionally:
• Software Link support
• SIP P2P
• Built-in relay
• Open API
