BI-04FB
$1,649.00 $1,738.00
Tags:

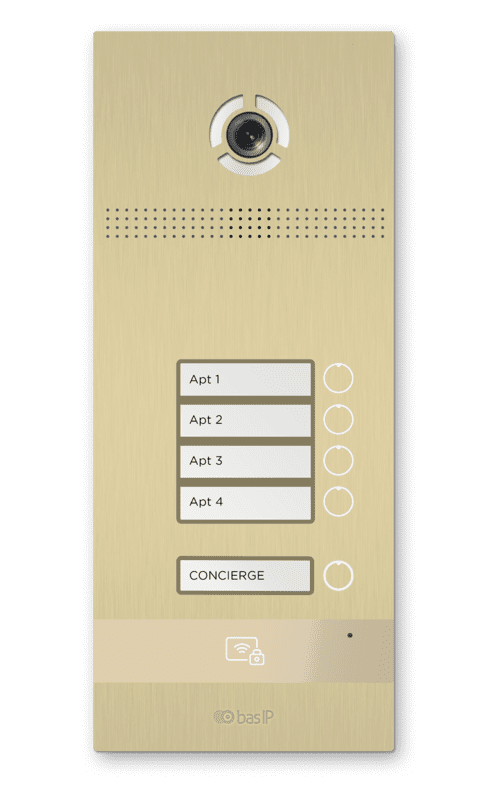

This unique multi-apartment entrance panel stands out from the crowd thanks to its stylish design.
The BI-04FB is equipped with a wide-angle camera and supports BAS-IP UKEY mobile access.
By using BI-04FB panel, it is possible to make direct calls to both internal monitors and the concierge.
The panel has a unique face recognition feature. This identifying technology is integrated into the BAS-IP panels and uses the camera on the outdoor panel and infrared sensors for its operation.
The technology uses hybrid 3D face recognition using several IR sensors and in-depth analysis (triggered in 0.6 seconds).
Once the tenants & common visitors are identified, the entrance panel can automatically unlock and announce an important message or useful information about the residential complex.
Product Details
Main features
• Panel type: Multi-apartment.
• Keypad: Backlight mechanical buttons.
• Camera: 1/4”.
• Angle: 110° (horizontal).
• Resolution: 2 Мp.
• Output video: Half HD (1280 × 720), H.264 Main Profile.
• Night backlight: 6 LEDs. • Light sensitivity: 0,01 Lux.
• Protection class: IP65. • IK-code: IK08.
• Working temperature: -40 — +65 °С.
• Power consumption: 6,5 W, in standby — 3,6 W.
• Power supply: +12 V DC, PoE. • Body: Aluminum.
• Colors: Silver, Gold, Black.
• Dimensions for installation: 142 × 358 × 58 mm.
• Size of the panel: 156 × 370 × 50 mm.
• Installation: Flush, surface with BR-AA12 Bracket.
Lock opening:
• By means of a monitor
• Face Recognition Identification
• By QR code
• By guest link
• By Pin
• By access card
• By license plates
• The BAS-IP Link app
• The BAS-IP Intercom app
• The BAS-IP UKEY app
• From API
Access control:
• Face Recognition
• UKEY (EM-Marin/ MIFARE®/NFC/Bluetooth)
• Multi-factor authentication
Supported standards:
• BLE (Bluetooth Low Energy): 2,45 GHz Bluetooth 4.x, Bluetooth 5.x.
• Mifare®, 13,56 MHz ISO14443A: Mifare®Standard, Mifare®Hi-Memory, Mifare®Ultralight, Mifare®Classic 1K/4K, Mifare®Classic 7UID, Mifare® Plus SL1 and SL3
• NFC, 13,56 MHz: ISO 14443/15693
• Cards 125 kHz: ASK and FSK
Reading range:
• NFC, Mifare cards and 125 kHz cards – up to 5 cm
• BLE – adjustable 10 cm – 10 m
Calling the lift to the floor: Yes
Face recognition Identifiers: 10 000 faces
Identifiers in the panel memory (QR codes, cards, key fobs, UKEY, access codes): 20 000
Onvif (Profile S): Yes
Integration with ACS: Wiegand
Built-in Wiegand output for card, key fob, and UKEY identifiers: 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bits
Connection of the additional SH-12 module and its support:
• Wiegand input: from 6 to 58 bits inclusive
• Wiegand output for card, key fob, UKEY, QR, Face, Digital code, and all other types of identifiers: from 26 to 128 bits inclusive
Quick-dial buttons: Concierge call button
Number of ringtones: 4 polyphonic ringtones
Authentication:
• Separate password for settings
• WEB-interface
Additionally:
• Software Link support
• SIP P2P
• Built-in relay
• Open API
