UPS-DP
$148.00 - $154.00
Uninterrupted power supply up to 3.5 A, with Controller for operate Loks, Fire input
Product Details

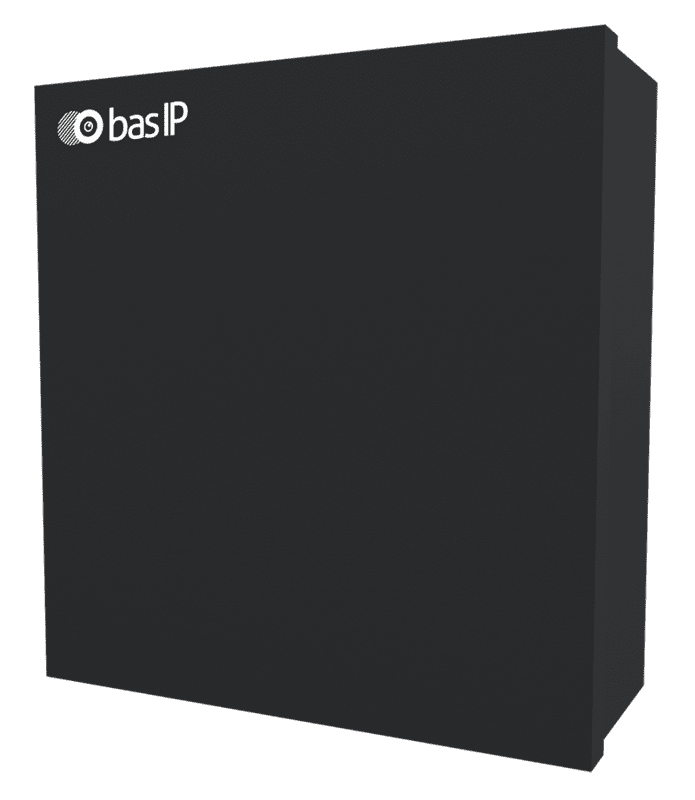

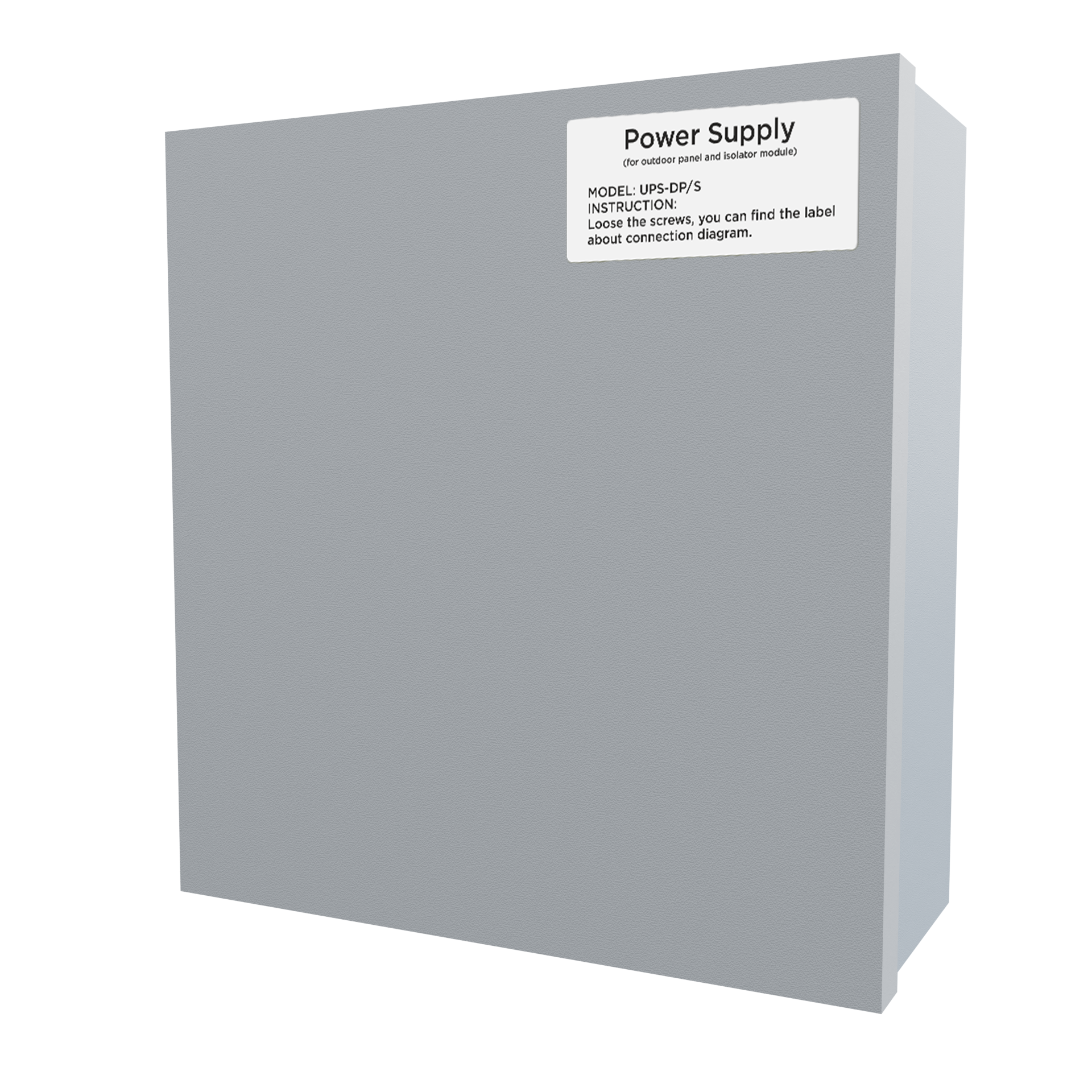

UPS (Uninterruptible Power Supply) unit for multi-apartment outdoor panels with built-in control of electromagnetic and electromechanical lock. It can also be used with individual panels or the concierge monitor.
Moreover, you can connect the exit button, electromechanical or electromagnetic lock to this device. Also, there is a fire input to trigger the relay in case of fire.
The UPS-DP/F can control the electromechanical lock of the Fire input.
Specifications:
Power supply: AC 100-230 V
Output power: +12 V
Maximum short-time load current: 3.5 A UPS-DP/F
Maximum short-time load current: 2.5 A UPS-DP/S
Case: Metal
Operating temperature: -40 – +60 °С
Protection class: IP30C
Device connection type: Multiapartment door panel
Dimensions: 180×190×72 mm
Gross weight: 1.27 kg
