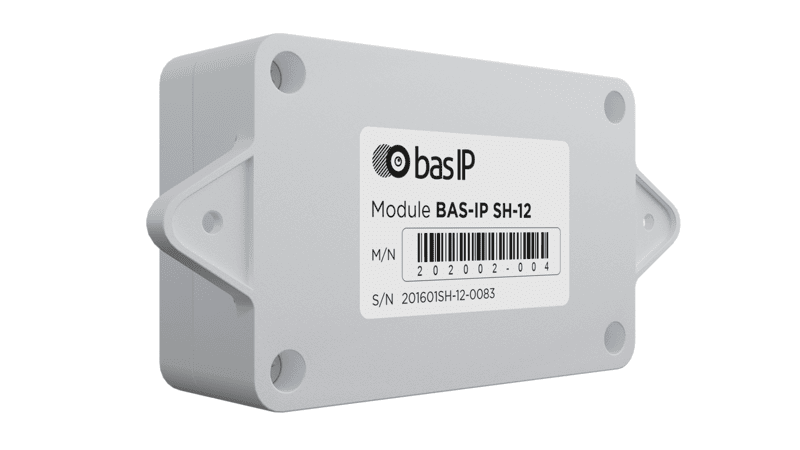

SH-12 | Input / Output External Wiegand Module
The SH-12 is an external device connection module for Wiegand interface to any BAS-IP panels.
This module is designed to connect external readers with a Wiegand output interface, as well as external access controllers with a Wiegand input interface.
It allows you to connect various external devices such as contactless card readers, key fobs, keys, access keypads, etc., which have a Wiegand physical interface at their output.
Additionally, it can be used to connect any external access controllers that have a physical Wiegand interface for reader input.
General characteristics

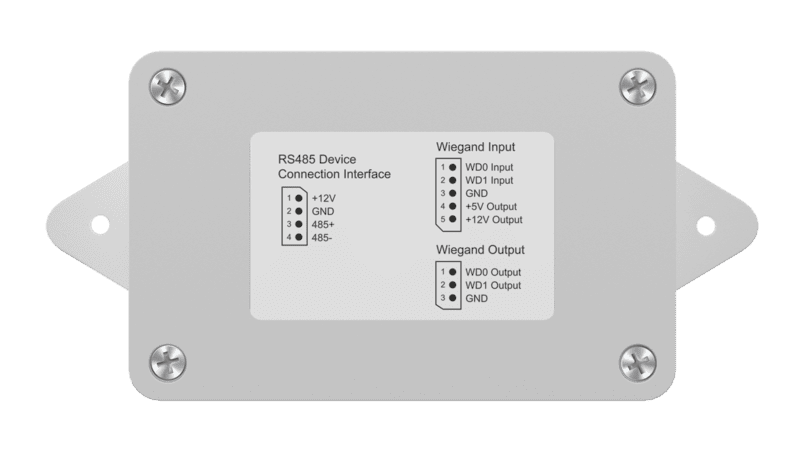

• Interface for connecting to BAS-IP panels: RS485 (A&B)
• Power supply: +12 V DC; Powered by the BAS-IP panels
• Current consumption: 0.15A
• Interface for connecting external readers: Wiegand 26, 34, 58, 64, 66 bit
• Interface for connecting access controllers: Wiegand 26, 34, 58, 64, 66 bit
• Operating temperature: -40 – +70°C
• Storage temperature: -15 – +65°C
• Permissible humidity: 20 – 80%
• Degree of protection: IP30C
• Weight: 0.11 kg
• Dimensions without mounting brackets: 82x56x34 mm
• Dimensions with mounting brackets: 115x56x34 mm
Additional features
• Power output for connected external readers with a power voltage of +12 V DC.
• Alternative power output for external readers with a power voltage of +5 V DC.
• Activity and data transmission intensity indicator LED.
