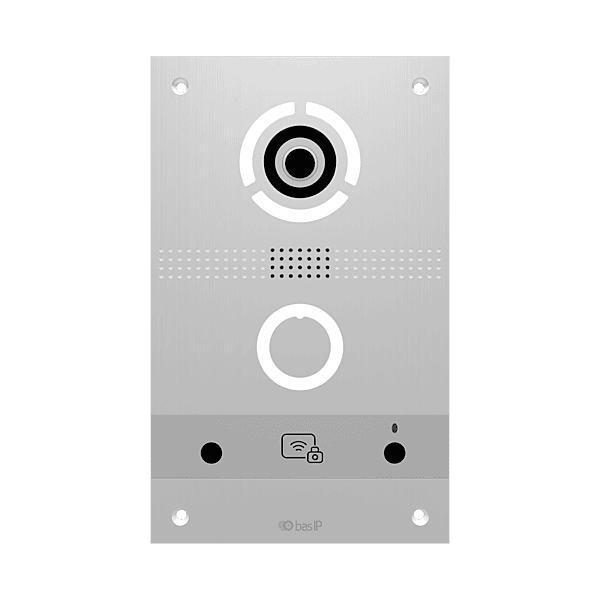

AV-08FBIL
The AV-08FBIL Face Recognition IP Intercom Panel is a premium smart access control solution designed for modern residential, commercial, and public buildings with a strong focus on accessibility and security.
Built with a durable aluminum housing, it features a 2MP HD wide-angle camera for clear visitor identification and advanced multi-factor authentication for secure access. Users can unlock doors using face recognition, PIN code, RFID card, QR code, BAS-IP UKEY mobile access, guest links, or API integration.
What makes AV-08FBIL unique is its accessibility-focused design, including a Braille call button and induction loop support, making it fully suitable for hearing and visually impaired users.
It supports SIP communication, PoE power, Wiegand integration, Open API connectivity, and smart lift control functions, making it ideal for modern smart buildings and large residential complexes.
With support for up to 20,000 identifiers and 10,000 face recognition users, AV-08FBIL delivers scalable, secure, and future-ready access control performance.
Key Features
- CameraDual HD cameras at 2MP resolution
- View AngleWide 120
- Door entry methodsFace Recognition (system dependent) PIN_Code Access_Card Mobile_App QR_Code Guest-Link Remote_Unlock API -Integration
- Users supportsUp_to_10000-face_identifiers; Up_to_20000-access identifiers (cards QR_codes UKEY codes)
General | Physical
- Touch ScreenNo
- Operating SystemLinux
- Power Supply12V/3A DC
- Camera1/3" IP Camera 2 MP
- Wiegand PortSupport
- RS485 PortSupported
- Enthernet PortRJ45 10/100 Mbps Ethernet
- Relay OutBuilt-in relay for door lock control
- IP/IK RatingIP65/IK07
- InstallationSurface or flush Mounting
- Working Temperature-40°C to +65°C
Video
- Video CodecH.264
- Video Resolution1920 × 1080 (1080p)
- Viewing Angle120°(H) / 75°(V) / 131°(D)
- Max. Image Transfer RateUp to 25–30 fps (network dependent)
Audio
- Audio CodecG.711 / G.729 (SIP based communication)
- DTMFSupported
- MicrophoneBuilt-in noise reduction microphone
- SpeakerBuilt-in speaker with echo cancellation
Networking
- ProtocolSIP 2.0 ONVIF Profile S TCP/IP RTSP HTTP/HTTPS Open API support
