Obelisk
$14,000.00
Tags:

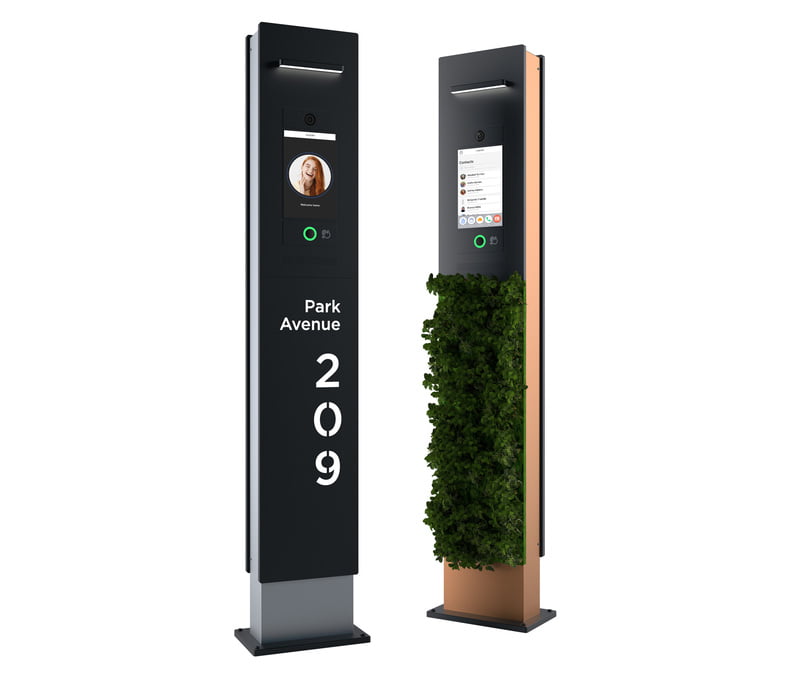

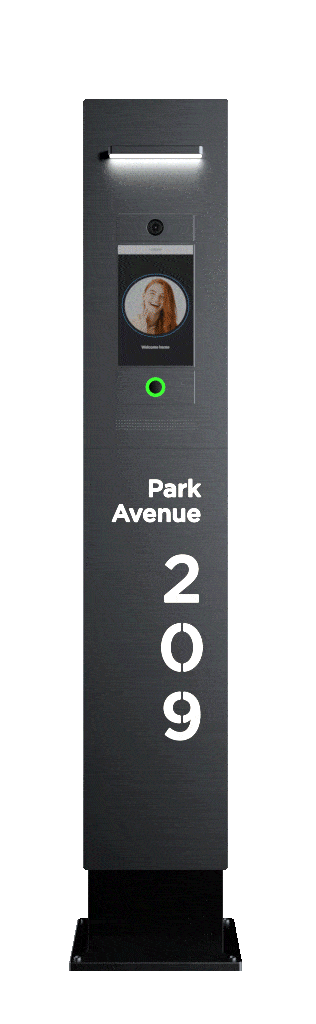

This is a unique intercom column with a 10" built-in high-resolution IPS touch screen, the image from which is perfectly visible even on a bright sunny day, an integrated surveillance camera, an intercom device, and a navigation system for the residential complex or territory where the device is installed.
Product Details
Specifications
Thoughtful and Reliable Intercom ColumnA large, 10″ touch screen displays a perfectly well-designed, convenient menu that everyone can navigate – from small children to elderly guests of the complex. Even if your guest sees the menu for the first time, they can call you without any problems and receive accurate information about how they can get to you.The Obelisk Intercom Pedestal screen works at extreme temperatures. Even at -40°С /-40°F, due to its built-in heating system, there will be no problems with the device freezing.A unique anti-vandal film protects the screen to withstand fate and vandals. The maximum operating temperature is 60°С / 140°FQuick And Secure Call to the ConciergeIn any non-standard situation or emergency, you or your guests can immediately contact someone. You can quickly call the concierge or guard directly from the intercom bollard using a large, easy-to-notice button with a unique backlight.It is also possible to install a weather widget and display information about the location of the apartment building.Convenient Mobile Access To UKEYThe Obelisk intercom pedestal supports UKEY keyless technology, so you can gain access by simply holding your phone to the panel. The access key is stored in the phone. However, it is impossible to copy or fake it. At the same time, the phone is always with you.PhonebookModern residential complexes and apartment buildings always have coffee shops, retail outlets, office space, and much more. With the help of the built-in phonebook, anyone can very quickly find the place they need and call there.At the same time, the Obelisk Intercom Column will show a map of the route so that the visitor can easily find their destination.Elevator ManagementSmart builders install innovative elevators. The Obelisk Intercom Column allows the complex guests to pass only to the floor where the person or office they visit is located, thus providing additional security for the residents. At the same time, residents of the complex can go not only to their floor but also to other permitted ones, for example, to visit a neighbor.AIThanks to the built-in artificial intelligence, the Obelisk intercom bollard provides additional security by not allowing strangers to enter the complex’s grounds. In addition, recognizing you by your face, you can be reminded about an upcoming holiday for children in the complex today or be provided personalized information.Multi-Factor AuthenticationThe Obelisk intercom bollard will not just allow a person into the territory by using a photo or an access card. It can compare a particular person's face with the access card. Thus, third party temporary workers will be excluded when they come to the tenants. Each resident can give a guest a virtual temporary key for entry and upload the guest's photo.
Key Features
- CameraDual HD cameras at 2MP resolution
- View AngleWide 110
- Door entry methodsFace Recognition PINCode Access-Card QR -Code BAS-IP UKEY Mobile -Access Mobile-App Guest-Link License-Plate (system dependent) API-Integration Monitor-Unlock Concierge-Call
- Users supportsUp_to_10000-face_identifiers; Up_to_20000-access identifiers (cards QR_codes UKEY codes)
General | Physical
- Touch ScreenYes
- Display Size10-inch high-resolution IPS display
- Operating SystemLinux
- Power Supply12V/3A DC
- CameraIntegrated HD IP surveillance camera
- Wiegand PortSupport
- RS485 PortSupported
- Enthernet PortRJ45 10/100 Mbps Ethernet
- Relay OutBuilt-in relay for door / gate control
- IP/IK RatingIP65, IK08
- InstallationFloor-mounted intercom column (outdoor / indoor architectural pedestal installation)
- Working Temperature-40°C to +65°C
Video
- Video CodecH.264 / IP streaming (system dependent)
- Video Resolution1920 × 1080 (1080p)
- Viewing Angle110° wide-angle camera system
- Max. Image Transfer RateUp to 25–30 fps (network dependent)
- Light CompensationIR/LED support (0.01 Lux capability system dependent)
Dispaly
- Display10” IPS Touch Display
- ResolutionHigh-resolution HD UI (system controlled interface)
Audio
- Audio CodecG.711 / G.729 (SIP based communication)
- DTMFSupported
- MicrophoneBuilt-in noise reduction microphone
- SpeakerBuilt-in high-power speaker for outdoor use
Networking
- ProtocolSIP 2.0 ONVIF Profile S TCP/IP RTSP HTTP/HTTPS Open API support
