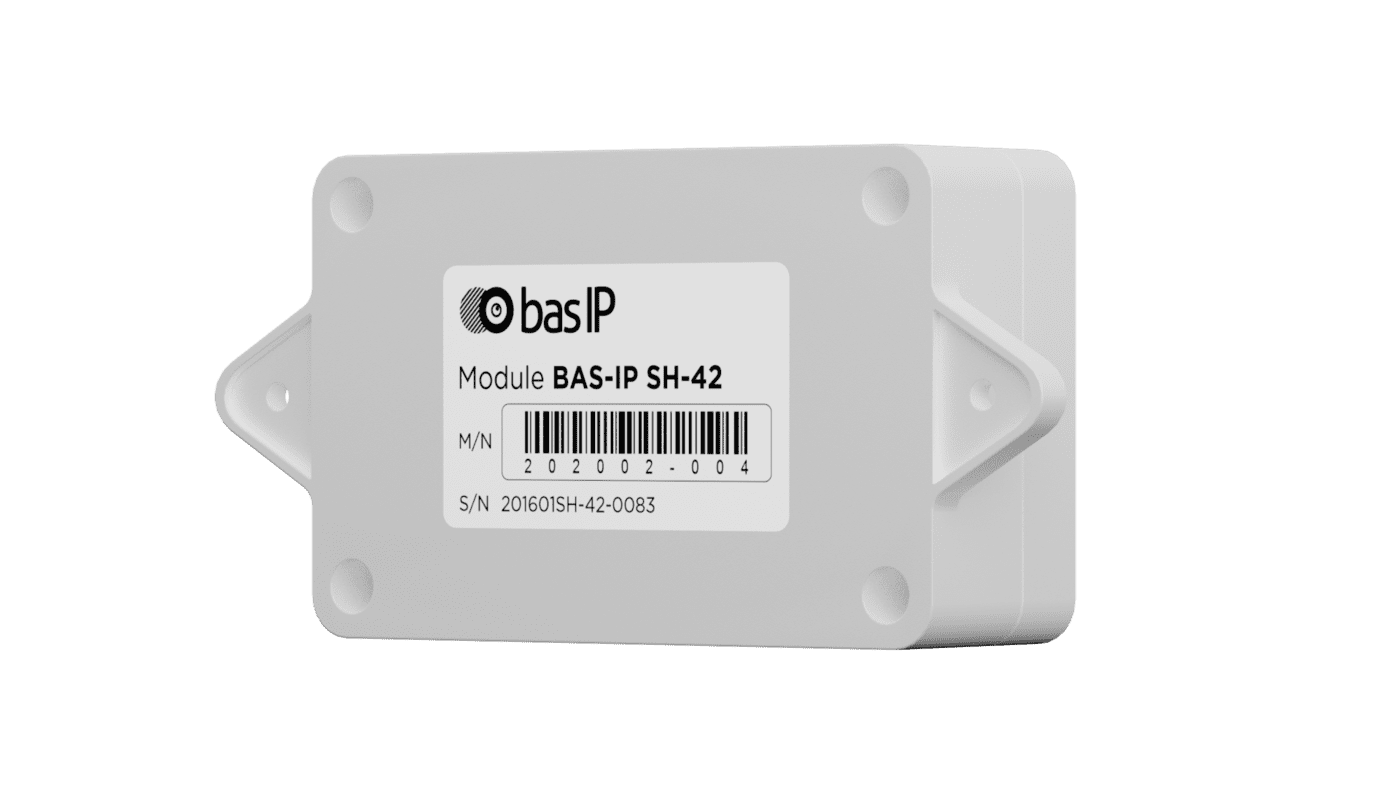

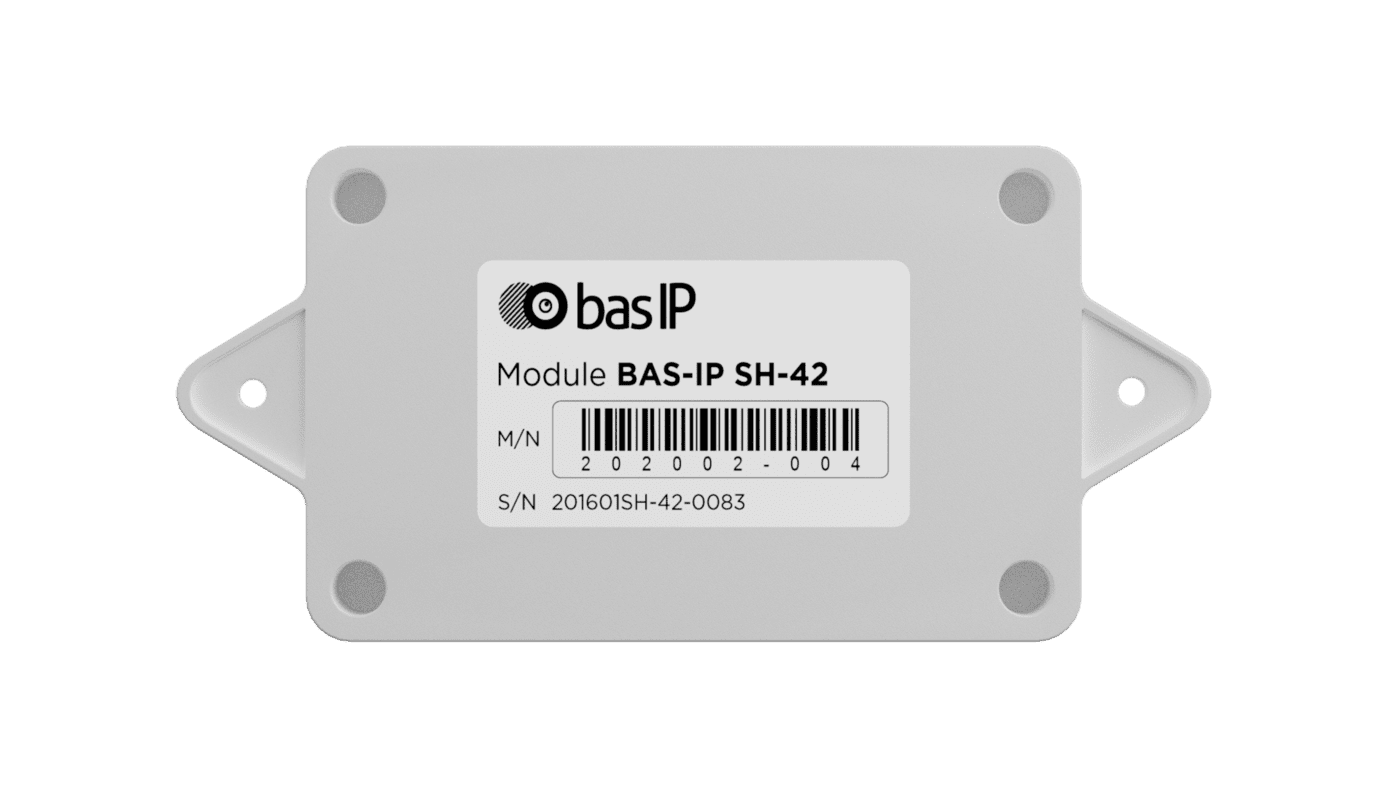

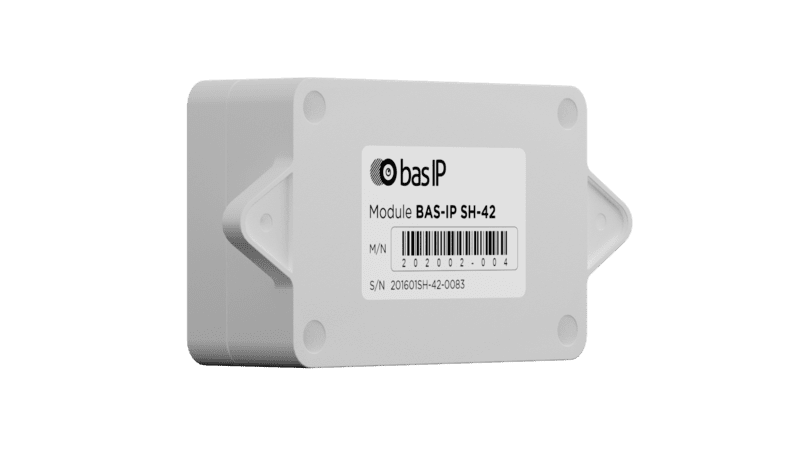

This module is designed to control two locks per 8A, both electromagnetic and electromechanical. Module connection is performed to the outdoor panel RS485 bus, and separate locks management is carried out with special internal monitors firmware.

The Two Locks Control Module is a sophisticated security solution designed to simultaneously lock and unlock a pair of locks, enhancing the convenience and efficiency of access control. This innovative module is ideal for situations where synchronized operation of multiple locks is crucial, such as secure facilities, shared spaces, or multi-user storage units.

The module is compatible with various lock types, including electromechanical, and electromagnetic, and can be easily integrated with existing security systems. By streamlining the locking and unlocking process, the Two Locks Control Module ensures seamless access while maintaining a high level of security and reducing the risk of human error.

The module connects to the external panel through an RS485 bus. This module is compatible with all BAS-IP intercom panels.

This module can be used in systems with enhanced security, if you need to connect locks remotely from the call panel.
Add to Cart
Product Details

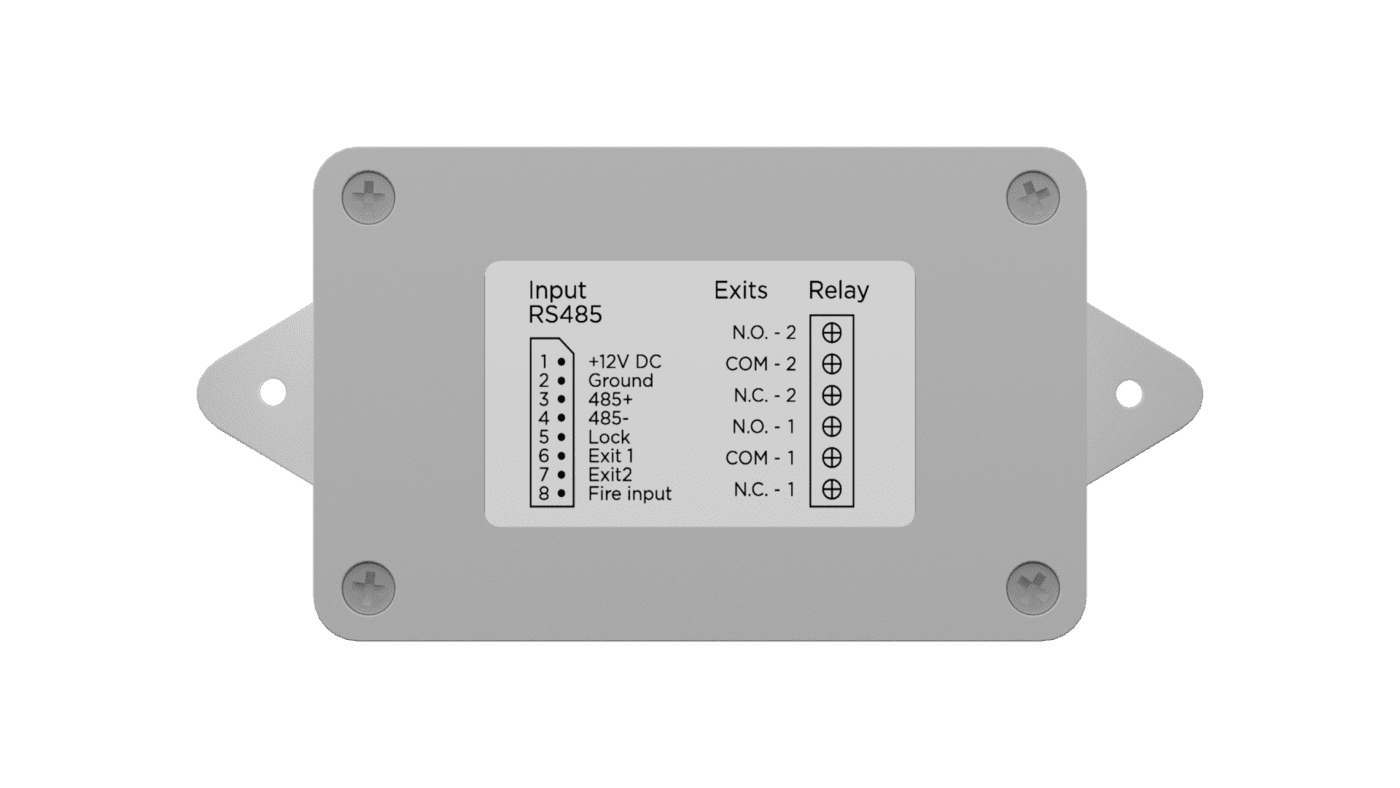

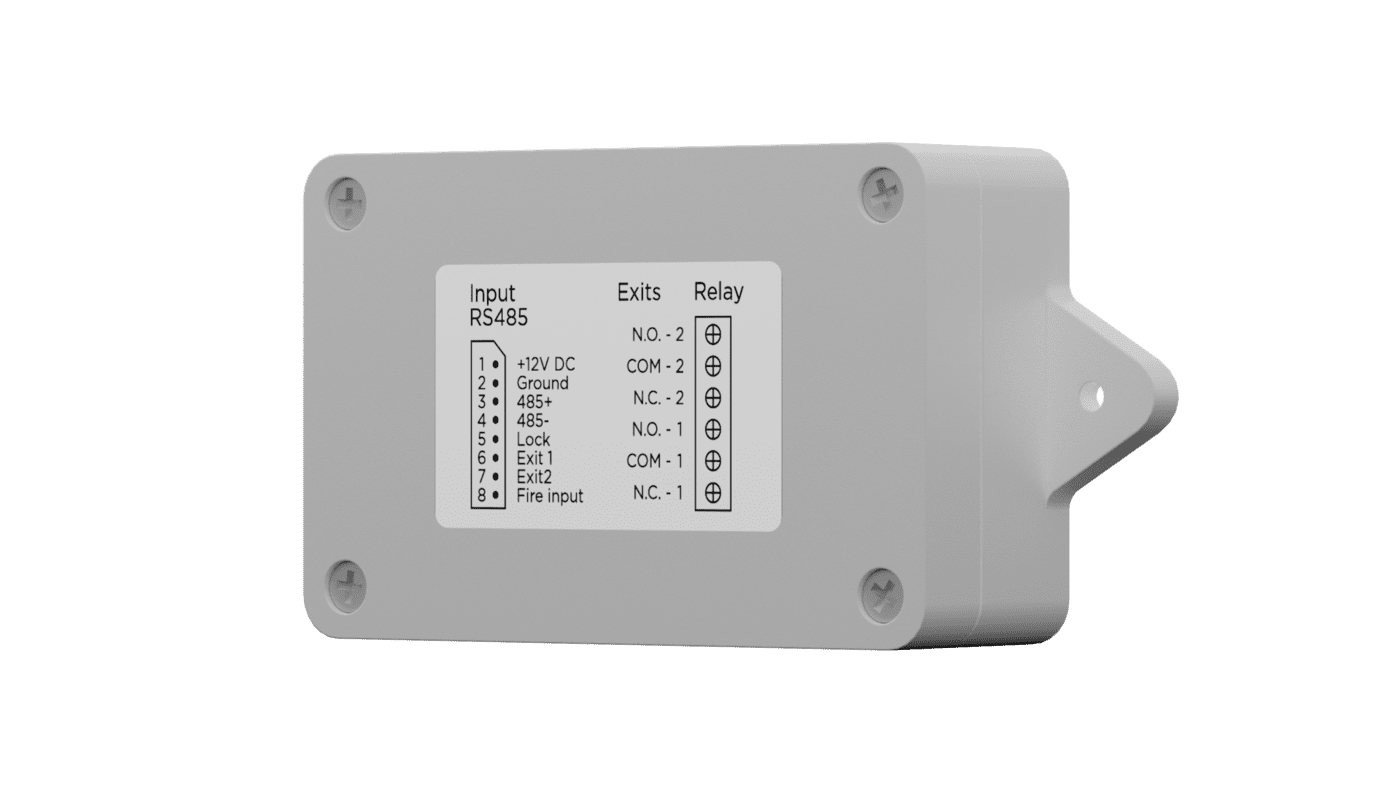

  • Two built-in relays to control two locks.
  • The ability to connect as electromechanical locks and latchesand electromagnetic locks.
  • Switchable contact group on each relay.
  • Communication with the call panel via RS-485 interface.
  • Input for control low-voltage analog signal.
Module supply voltage: +12 V DC
Power consumption in operating mode: 1 W
Standby power consumption: 0.06 W
Maximum current of connected load: 7 A (per channel)
Maximum constant load voltage: +30 V
Maximum AC load voltage: ~ 250 V
Operating temperature: -40 – +75 °C
Storage temperature: -15 – +65 °C
Permissible humidity: 20 – 80%
Overall dimensions: 114.5 × 57.5 × 34 mm
Weight: 0.11 kg
Gross weight: 0.14 kg
