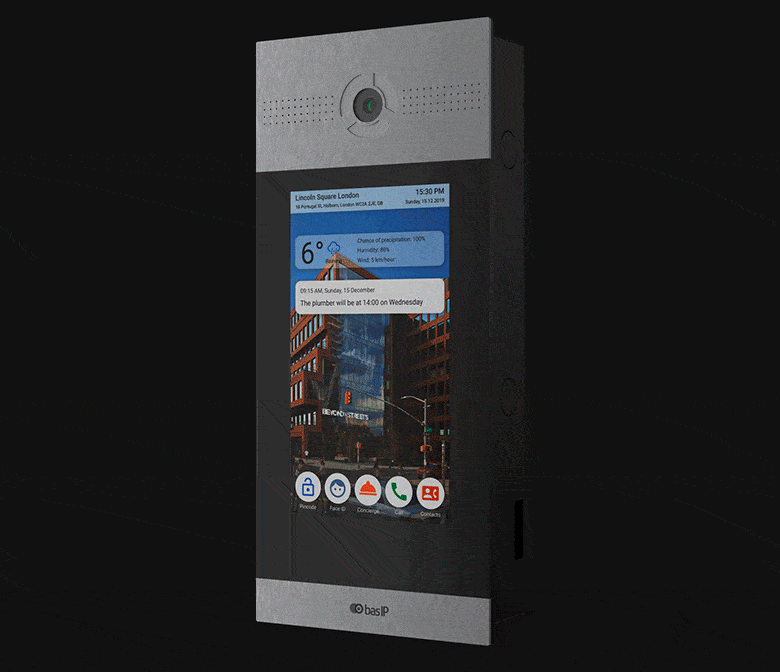

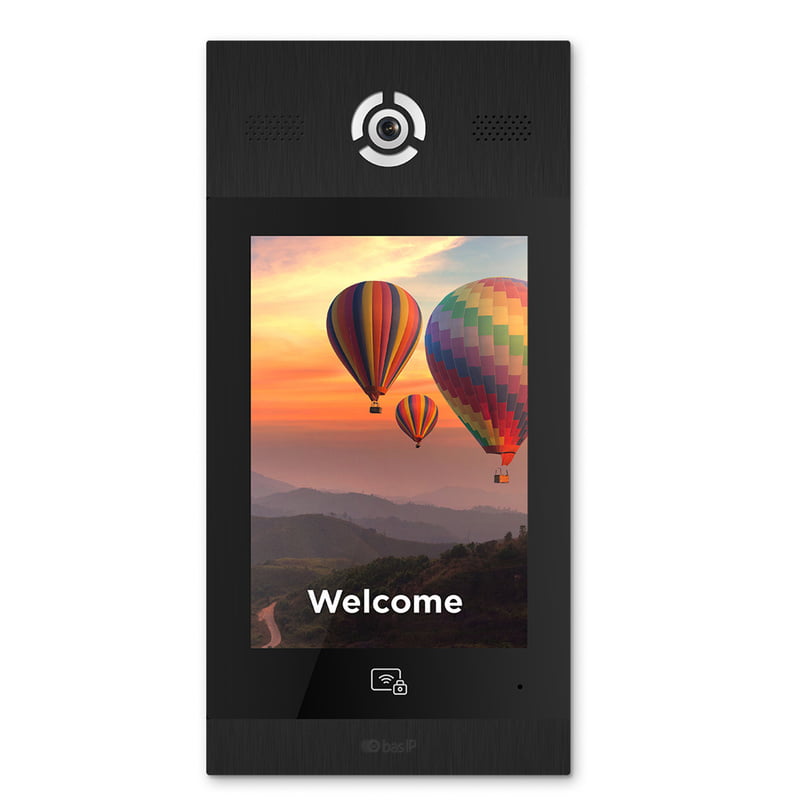

Exclusive multi-apartment BAS-IP AA-14FB entrance panel for the most demanding projects.
The new panel will please both architects with its appearance, and engineers with its set of unique functions.
The panel supports automatic face recognition and UKEY mobile access. An open API has been developed for integrations with third-party systems.
10" touch screen. UKEY Support. Phone book. Concierge calling.
Calling the lift to the floor. Flexible system setup. Working temperature -40 - +65 °С.
Add to Cart
Product Details
Introducing a premium multi-apartment entry panel designed for the most luxurious projects.
  • Automatic facial recognition
    • Utilizing 3D facial recognition with infrared sensors and in-depth analysis, the technology activates in just 0.6 seconds. New faces can be added to the database directly through the panel or remotely using BAS-IP Link software.
  • 10" touchscreen
  • UKEY support
    • The panel supports UKEY mobile access, allowing door opening via a smartphone while maintaining compatibility with traditional key fobs or access cards.
  • Phone book
    • Featuring a phone book that displays subscribers’ names (residents) or office names for panels installed in business centers. This enables visitors to call specific offices without knowing the office number, guided only by the office name.
  • Concierge calling
  • Elevator call feature
    • Once the entrance has been unlocked for a guest, the elevator number assigned to transport them to their desired floor is exhibited on the call panel screen.
  • Flexible system configuration
    • The panel is capable of presenting various informational messages, such as announcements from the residential complex where it is situated. Additionally, it can broadcast advertisements, videos with audio, and HTML content to update users or provide information to visitors.
  • Operating temperature range: -40°C to +65°C
Tenants can submit their photographs to the administrator, who will then remotely incorporate the image into the designated panel.
Force the initialization or configuration of a single device or all devices in the system simultaneously from a distance, utilizing the Link software.
Alerts for any panel issues are automatically sent to the management company’s server.
Updates through Link software eliminate the need to physically access each panel for modifications – all tasks can be completed remotely.
A comprehensive record of all activities, such as panel adjustments, passersby, and calls made, can be reviewed at any time.
The API enables swift and straightforward integration of the panel into external systems (such as ACS), replicating all functionalities available through the panel’s web interface. This feature is particularly useful when initially designing the intercom system during construction, and later developing a custom IT system for residential complexes.

  • Panel type: Multi-apartment
  • Display: 10“ TFT, color, with backlight and heated
  • Camera angle: 110° (horizontal)
  • Resolution: 2.0 Мp
  • Output video: Full HD (1920×1080), H.264 Main Profile
  • Night backlight: 6 LEDs
  • Light sensitivity: 0.01 Lux
  • IK-Code: IK06
  • Protection class: IP65
  • Operating temperature: -40 – +65 °С
  • Operating humidity: 0% – 86%
  • Storage Humidity: 0% – 60%
  • Power consumption: 6.5 W, in standby – 3.6 W
  • Power supply: +12 V DC (+8% -4%)
  • Case: Aluminum
  • Dimensions: 180×400×45 mm
  • Box dimensions: 458×228×105 mm
  • Gross weight: 3.48 kg
  • Installation: Flush mounting, wall mounting with BR-AA14
  • Keyboard: Touch Screen
  • Interface: Multi-language, WEB-interface
  • Access control
  • -Face Recognition
  • -UKEY (EM-Marin/ MIFARE®/NFC/Bluetooth)
  • -Multi-factor authentication
  • Calling the lift to the floor: Yes
  • Identifiers in the panel memory: 20,000
  • Face recognition identifications: 10,000
  • Integration with ACS: Output WIEGAND-26, 32, 34, 37, 40, 42, 56, 58, 64 bit
  • Reading range:
    • NFC, Mifare cards and 125 kHz cards – up to 5 cm
    • BLE – adjustable 10 cm – 10 m
  • Supported Wiegand types: 26, 32, 34, 37, 40, 42, 56, 58, 64
  • Supported standards:
    • BLE (Bluetooth Low Energy): 2,45 GHz Bluetooth 4.x, Bluetooth 5.x.
    • Mifare®, 13,56 MHz ISO14443A: Mifare®Standard, Mifare®Hi-Memory, Mifare®Ultralight, Mifare®Classic -1K/4K, Mifare®Classic 7UID, Mifare® Plus SL1 and SL3
    • NFC, 13,56 MHz: ISO 14443/15693
    • Cards 125 kHz: ASK and FSK
