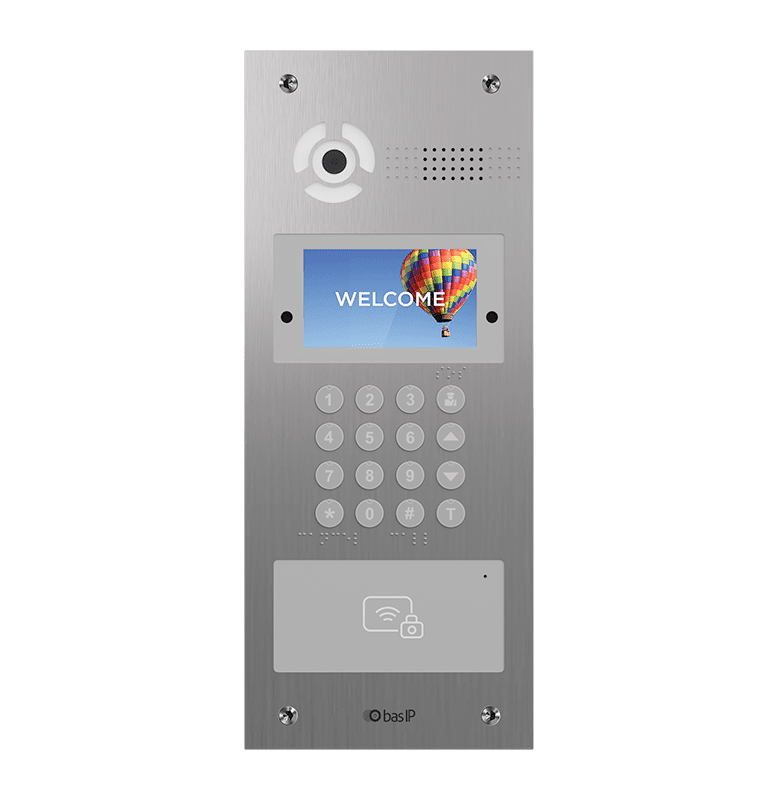

BAS-IP AA-07FB entrance panel, stainless steel, front view with display, keypad and reader
BAS-IP AA-07FB entrance panel, stainless steel, front view with display, keypad and reader
BAS-IP AA-07FB entrance panel, silver, front view with display, keypad and reader
BAS-IP AA-07FB entrance panel, silver, front view, display off
BAS-IP AA-07FB entrance panel, silver, angled front view
BAS-IP AA-07FB entrance panel, silver, rear angled view
BAS-IP AA-07FB entrance panel, silver, rear view
BAS-IP AA-07FB entrance panel, silver, rear angled view
BAS-IP AA-07FB entrance panel, silver, front view, display off
BAS-IP AA-07FB entrance panel, stainless steel, front view, display off
BAS-IP AA-07FB entrance panel, stainless steel, angled front view
BAS-IP AA-07FB entrance panel, stainless steel, rear angled view
BAS-IP AA-07FB entrance panel, stainless steel, rear view
BAS-IP AA-07FB entrance panel, stainless steel, rear angled view
BAS-IP AA-07FB entrance panel, stainless steel, angled front view

AA-07FB

$1,546.00 - $1,791.00
Out of stock Out of stock
Tags:

BAS-IP AA-07FB: Face Recognition Multi-Apartment Video Intercom Panel

Built for apartment buildings, offices and gated communities.

  • Face recognition for up to 10,000 faces, with multi-factor authentication
  • 4.3" backlit color display and 2 MP 1080p camera
  • Opens by face, UKEY app, PIN, card, QR code, license plate or indoor monitor
  • IP65 metal housing, rated -40°F to 149°F
  • Silver or stainless steel; flush or wall mount

                                           Become a Dealer

Color
Quantity
Add to Cart
Product Details

The BAS-IP AA-07FB is a multi-apartment IP video intercom panel with built-in face recognition for up to 10,000 faces. It combines a 4.3" backlit color display, a 2 MP 1080p camera and an IP65 metal housing, and is available in silver or stainless steel.

Key features

  • Face recognition for up to 10,000 faces, plus multi-factor authentication
  • 4.3" backlit color display with a 2 MP, 1080p IP camera and 110° viewing angle
  • Opens by face, mobile app, PIN, card, QR code, guest link, license plate or API
  • BAS-IP UKEY mobile access with Bluetooth, NFC and MIFARE support
  • Induction loop output for hearing-impaired users
  • IP65 protection, IK07 impact rating (IK08 on the stainless steel model), rated -40°F to 149°F

Technical specifications

Display and camera

Display4.3" TFT, color, backlit
Camera resolution2.0 MP
Viewing angle110° horizontal
Video output1080p (1920×1080), H.264 Main Profile
Night backlight6 LEDs
Light sensitivity0.01 lux

Access and unlocking

Unlock methodsIndoor monitor, face recognition, QR code, guest link, PIN, access card, license plate, BAS-IP Link app, BAS-IP Intercom app, BAS-IP UKEY app, API
AuthenticationFace recognition, UKEY (EM-Marin, MIFARE, NFC, Bluetooth), multi-factor authentication
Face capacity10,000 faces
Stored identifiers20,000
Reading rangeNFC, MIFARE and 125 kHz cards up to 2 in; Bluetooth adjustable 3.9 in to 33 ft
StandardsBluetooth LE 2.45 GHz (4.x, 5.x); MIFARE 13.56 MHz ISO 14443A (Standard, Hi-Memory, Ultralight, Classic 1K/4K, Classic 7UID, Plus SL1/SL3); NFC 13.56 MHz ISO 14443/15693; 125 kHz cards (ASK, FSK)
Elevator callYes
Hearing-impaired outputExternal induction loop, low-frequency audio 1.2 V, 8.2 kOhm, TRS socket (female)

Hardware, power and environment

HousingSilver: aluminum. Stainless steel: AISI 304, 0.12 in thick
ProtectionIP65; IK07 (silver), IK08 (stainless steel)
Operating temperature-40°F to 149°F
Operating humidity0% to 86%
Storage humidity0% to 60%
Power supply+12 V DC (+8% / -4%)
Power consumption6.5 W (3.6 W standby)
ButtonsMechanical, backlit; concierge call button
Ringtones4 polyphonic
InstallationFlush mounting, or wall mounting with bracket
Panel dimensions6.1 × 14.8 × 2.2 in
Flush-mount cutout5.55 × 13.82 × 2.36 in
Box dimensions17.0 × 7.9 × 3.8 in
Gross weightSilver 5.9 lb; stainless steel 7.1 lb

Integration and software

ONVIFProfile S
Access control outputWiegand (types 26, 32, 34, 37, 40, 42, 56, 58, 64)
Protocols and softwareSIP P2P, Software Link, Open API, built-in relay
InterfaceMultilanguage web interface
SecuritySeparate password for settings
