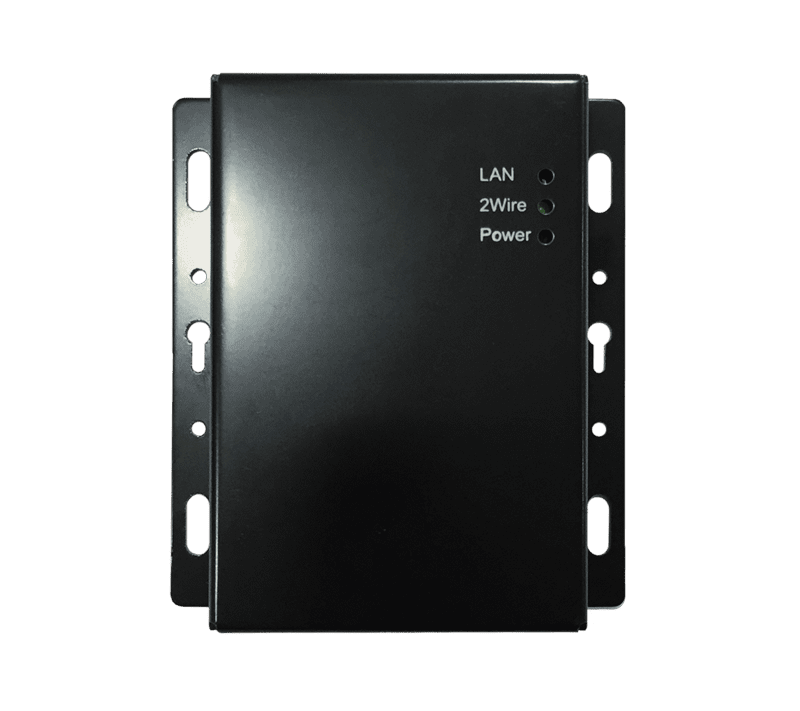

SW-02
$107.00
Tags:
Ability to connect outdoor panel, internal monitor or to LAN via Ethernet in one side and via 2 wires to SW-10/SW-08 converter on other side. Power supply – 48 Volts DC. Supports PoE. Cable lenght: 50 meters max with 2 wires, 100 meters max with Ethernet cable (UTP cat 5,6).
Product Details
Power supply: 48 V DC (PoE)
Power consumption: 1 W in standby mode, 7 W in operation
Connection: UTP CAT 5 on one side, and 2 wires (AWG 24) on other side
Cable lenght: 50 meters max with 2 wires, 100 meters max with Ethernet cable (UTP cat 5,6)
Box dimensions: 135×97×33 mm
Gross weight: 0.19 kg
