Product Details
Compact Elegance Meets Advanced Security

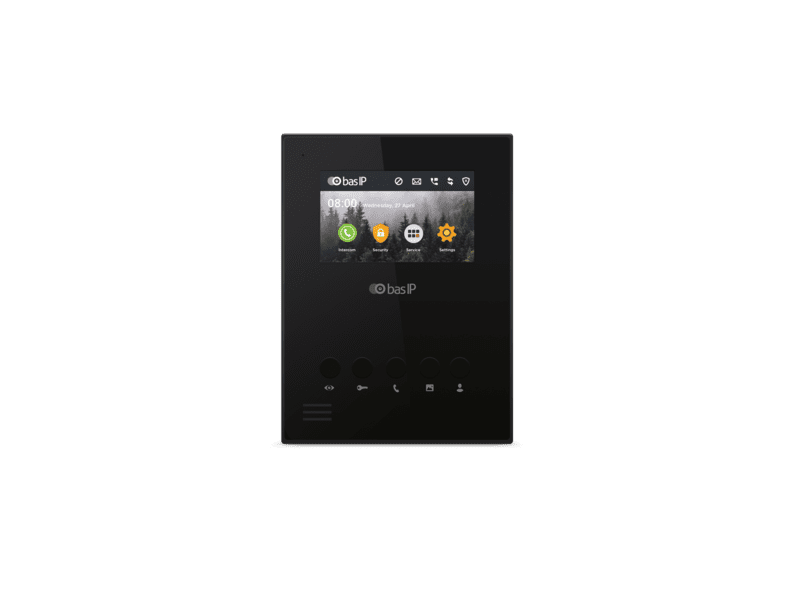

Upgrade your home security and communication with the BAS-IP AU-04LA IP Indoor Video Phone, a compact and sophisticated device packed with innovative features.
Crystal-Clear Display
The BAS-IP AU-04LA boasts a 4.3-inch TFT LCD touch screen with a 480×272 resolution, ensuring sharp visuals and a user-friendly experience. The capacitive touch screen makes navigating the device a breeze, while the multilingual graphical interface caters to users from diverse backgrounds.
Energy-Efficient Performance
With a power consumption of just 6W during use and 2.5W in standby mode, the BAS-IP AU-04LA is both energy-efficient and environmentally friendly. The device is powered by PoE or a +12 V DC power supply for added flexibility.
Sleek Design and Easy Installation
Available in both white and black, the device’s plastic casing adds a touch of elegance to any interior. The wall-mountable design ensures easy installation, with dimensions of 135x185x30 mm to fit seamlessly into your living space.
Enhanced Connectivity
The BAS-IP AU-04LA supports connections to up to 9 individual outdoor panels, 9 multi-apartment outdoor panels, and 8 IP cameras, providing comprehensive coverage for your home security needs. Expand your system by connecting up to 5 additional monitors, ensuring that you’re always aware of what’s happening in and around your home.
Internal Memory for Added Security
The built-in memory allows for recording photos, ensuring that you have a visual record of any events or visitors. This added layer of security provides peace of mind and allows you to review past incidents if necessary.
Concierge Message Support
Stay connected with your building’s concierge, thanks to the BAS-IP AU-04LA’s support for receiving messages. This convenient feature keeps you informed about important building updates, announcements, or notifications.
Specifications:
Display: 4,3” TFT LCD, touch screen, capacitive
Screen resolution: 480×272
Built-in camera: No
Power: 6 W, in standby – 2,5 W
Power supply: PoE, +12 V DC (+11% -6%)
Dimensions:
135×185×30 mm (without SP-AU)
195×185×30 mm (with SP-AU)
135×185×30 mm (without SP-AU)
195×185×30 mm (with SP-AU)
Colors: White, Black
Case: Plastic
Installation: Wall mounting
Operating Humidity: 20% – 80%
Operating temperature: -10 – +55 °С
Box dimensions: 233×168,5×65 mm
Gross weight: 0,61 kg
Number of ind. outdoor panels: Up to 9 panels
Number of multi app. outdoor panels: Up to 9 panels
Connection of additional monitors: Up to 5 monitors
Memory: Recording photo to internal memory
Interface: Multilanguage, graphic
Number of IP cameras: Up to 8 cameras
Intercom type: Video intercom
Home automation control: Light, curtains, elevator
Support of receiving messages: Yes
Alarm: 4 inputs for sensors
Scenarios: Yes
Voicemail: No
Photo frame mode: No
Viewing IP cameras in the standby mode: Yes
Software update: Via Ethernet
Additionally:Door bell connection; SIP-P2P; Controlled output on incoming call
