SP-03
$175.00
Tags:
A subscriber Hands-Free IP audio device that supports SIP, P2P and the internal BAS-IP protocol. Audio handset; Ethernet 10/100; Power: +12 V DC or PoE 802.3af; The standard distance when talking is 40-60 cm but can vary from a few cm to 1 m; IP40; Humidity 20%-86%; Speaker power - 1 Watts; DND button; Concierge button; LED assistance during actions; Ability to connect doorbell, SOS button; Elevator control; Wall mounting.
Product Details

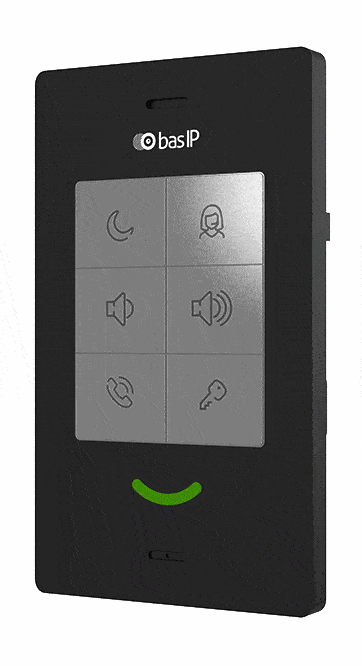

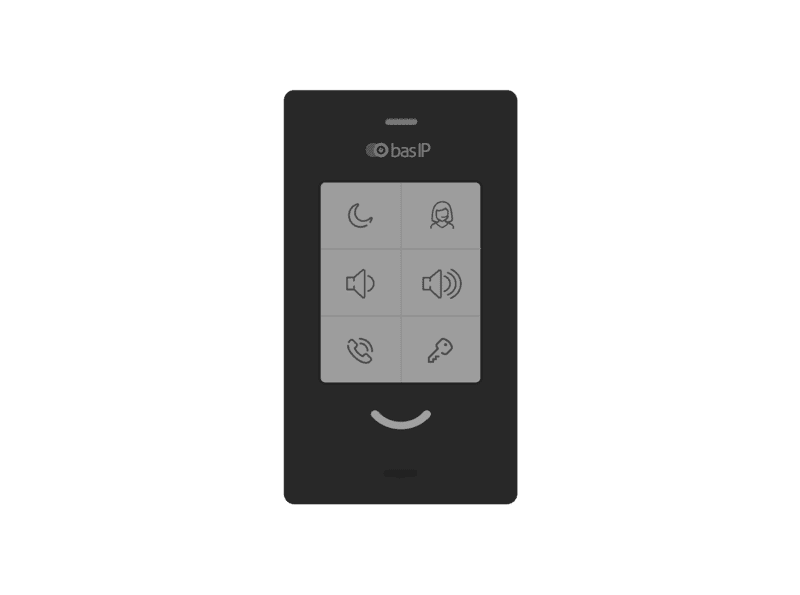

Functionality of 6 buttons, from left to right, from bottom to top:
Answering an incoming call/ending a call.
Opening the lock. Automatic receipt of settings from Link.
Reduce the master volume level (6 volume levels, changes in the mode of playing the melody of an incoming call). Turn off the microphone (during a call);
Increase the master volume level (6 volume levels, changes in the mode of playing the melody of an incoming call and cyclically during a call).
DND - turn off the ringtone when an incoming call is made, only the indicator light flashes.
Call the concierge.
Indicator light statuses:
- The device is in standby mode - constant white backlight.
- Incoming/outgoing call - flashing green backlight.
- Conversation - constant green illumination.
- DND on - constant red backlight.
- A signal was sent to open the lock - alternate flashing of white and green backlight 3 times in 1.5.-2 seconds.
- Mute during a call - slowly flashing red and green backlight in shifts.
- Pressing the volume button - flashing the white backlight 1 time, then returning to the backlight of the current mode.
- The mode of automatic receipt of settings is the alternate flashing of red, green and blue backlights.
Additionally:
- Network connection: Ethernet 10/100.
- Power supply: +12V and PoE 802.3af.
- Connecting an additional handset.
ENHANCED SECURITY MEASURES
Your apartment’s security is consistently monitored by the system, allowing you to react promptly to any unexpected situations.
The device can broadcast urgent announcements in “Standby” mode and supports the connection of alarm sensors.
MULTIPLE COMMUNICATION ALTERNATIVES
The SP-03 facilitates seamless communication with various home services:
- Concierge Calling
- Elevator Call Feature
- Doorbell Button Connection
- Callback Option for Disconnected Calls
- “Do Not Disturb” mode
The touch-sensitive buttons on the hands-free IP audio SP-03 offer a virtually limitless number of presses, as opposed to mechanical buttons with limited use. The buttons are large, backlit, and user-friendly.
INTUITIVE DESIGN FOR ALL GENERATIONS
The device boasts a seamless design that effortlessly complements any interior while adhering to contemporary ergonomic and comfort standards, ensuring a user-friendly experience for individuals of all ages.
EFFORTLESS MONITOR SUBSTITUTION
When needed, the pre-installed SP-03 hands-free IP audio can be conveniently replaced with a BAS-IP monitor.
ADJUSTABLE CONFIGURATIONS AND EXPANDABILITY
ACCESSIBLE API
The device’s API enables swift and straightforward integration into third-party systems (such as ACS), replicating all functionalities available on the SP-03 web interface. This is particularly useful when initially designing an intercom system during construction and subsequently establishing an Ethernet local system within the residential complex.
POWER OVER ETHERNET (POE)
To reduce the need for extensive electrical wiring, the device can be powered using an Ethernet cable (employing PoE technology) or through a separate +12 V power source. Backup power capabilities ensure the device’s reliable performance in the event of a malfunction or disruption in one of the connected power supplies.
COMPLIMENTARY SIP ACCOUNTS
The SP-03 includes five complimentary SIP accounts for the BAS-IP Intercom application, enabling call forwarding setup for all family members.
CENTRALIZED MANAGEMENT
Efficiently update the devices remotely using Link software, eliminating the need for manual, individual updates on each device.
