AA-14FBS
$2,942.00
Tags:

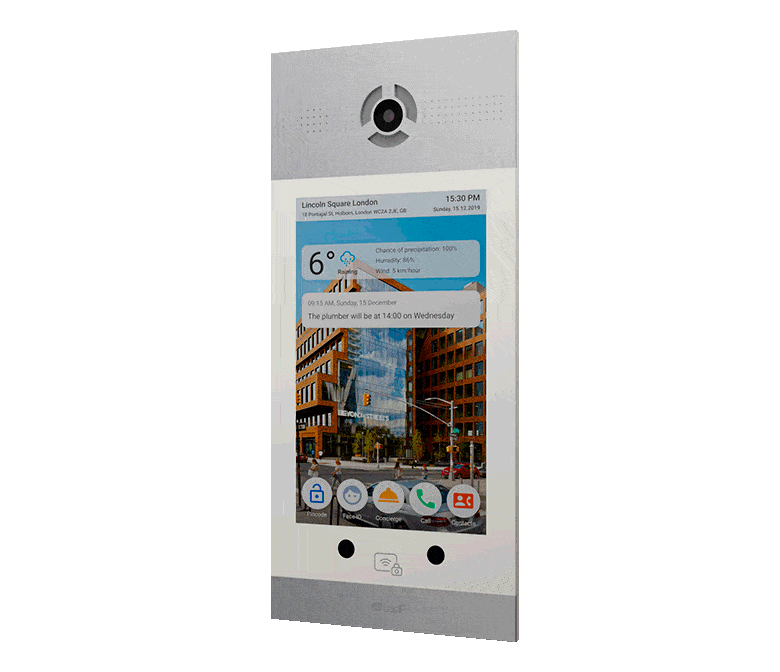

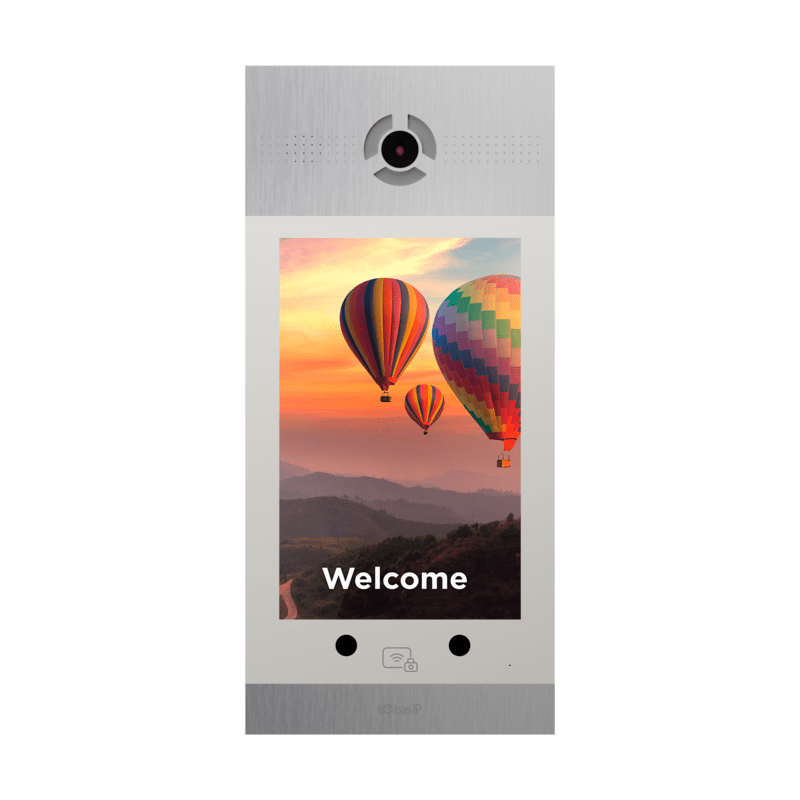

The BAS-IP AA-14FBS is an advanced IP video intercom entrance panel designed for apartment buildings, residential communities, and commercial properties. It features a 10.1-inch touchscreen, facial recognition, and multiple access options, including PIN codes, access cards, QR codes, license plates, and UKEY mobile access.
Its 2 MP Full HD camera with night illumination provides clear visitor identification, while the IP65-rated aluminum housing is built for outdoor use. With SIP support, Wiegand output, and an open API, the AA-14FBS integrates with modern building access control systems.
Product Details
Undeniable advantages:
- Availability of full device API functionality via HTTP and MQTT(S);
- Support for Wiegand I/O with up to 130 bits; Support for Bluetooth identifiers;
- Support for car license plates as guest identifiers;
- Automatic call for Kone elevators from the intercom panel;
- User ability to change event melodies and screen messages independently;
- Support for Apple Wallet for guest identifiers and configuration of identifier appearance;
- Unlocking doors and calling elevators using Siri and Apple Watch;
- Firmware updates for devices via the internet.
• Panel type: Multi-apartment.
• Display: 10.1’’ IPS, color with backlight and heated.
• Display angle: 176° (horizontal) / 174° (vertical).
• Keyboard: Touch screen.
• Camera: 1/3”.
• Resolution: 2 Мpx.
• Сamera angle: 110° (horizontal).
• Output video: Full HD (1920 × 1080), H.264 Main Profile.
• Night backlight: 6 LEDs.
• Light sensitivity: 0,01 LuX.
• Protection class: IP65.
• IK-Code: IK06.
• Working temperature: -40 — +65 °С.
• Power consumption: 6,5 W, in standby — 3,6 W.
• Power supply: +12 V DC.
• Body: Aluminum.
• Colors: Silver, Black.
• Dimensions for installation: 172 × 373 × 58 mm.
• Size of the panel: 185 × 400 × 45 mm.
• Installation: Flush, surface with BR-AA14 bracket.
• Interface: Multi-language graphical and WEB interface
• Lock opening:- By means of a monitor
- Face Recognition Identification
- By QR code
- By guest link
- By Pin
- By access card
- By license plates
- The BAS-IP Intercom app
- The BAS-IP Link app
- The BAS-IP UKEY app
- From API
• Access control : Face Recognition, UKEY (EM-Marin/ MIFARE®/NFC/Bluetooth), Multi-factor authentication
• Access control integration: WIEGAND-26+ output
• Shortcut buttons: Concierge button
• Number of call melodies: 4 polyphonic melodies, ability to customize melodies for different actions
• Authentication: Separate password for settings, WEB – interface and RTSP stream
• Talking mode: Full duplex
• Additionally: Software Link support, SIP P2P, Built-in relay, Proximity sensor, Open API
