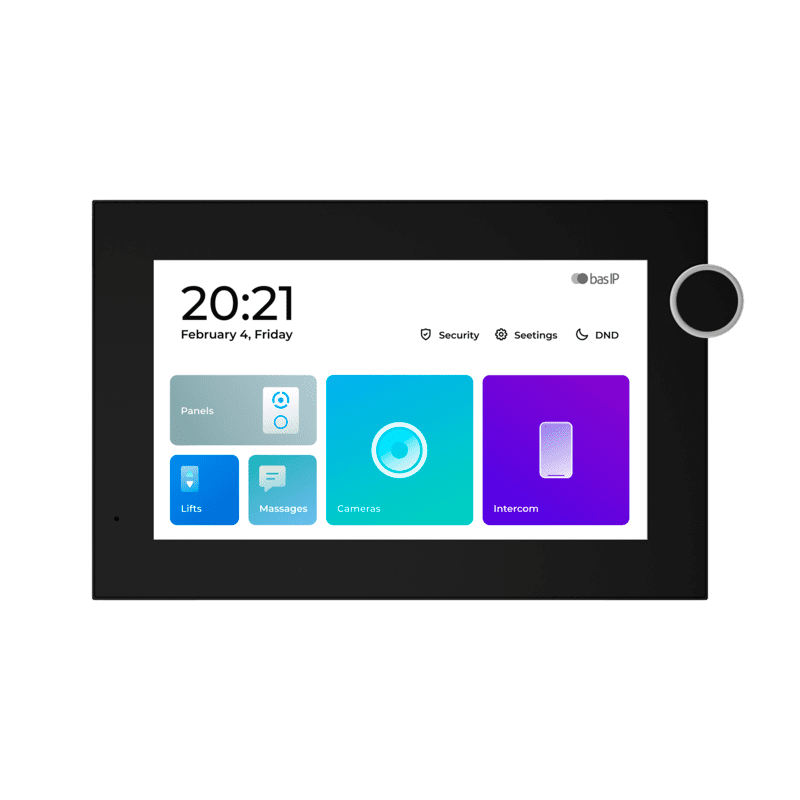

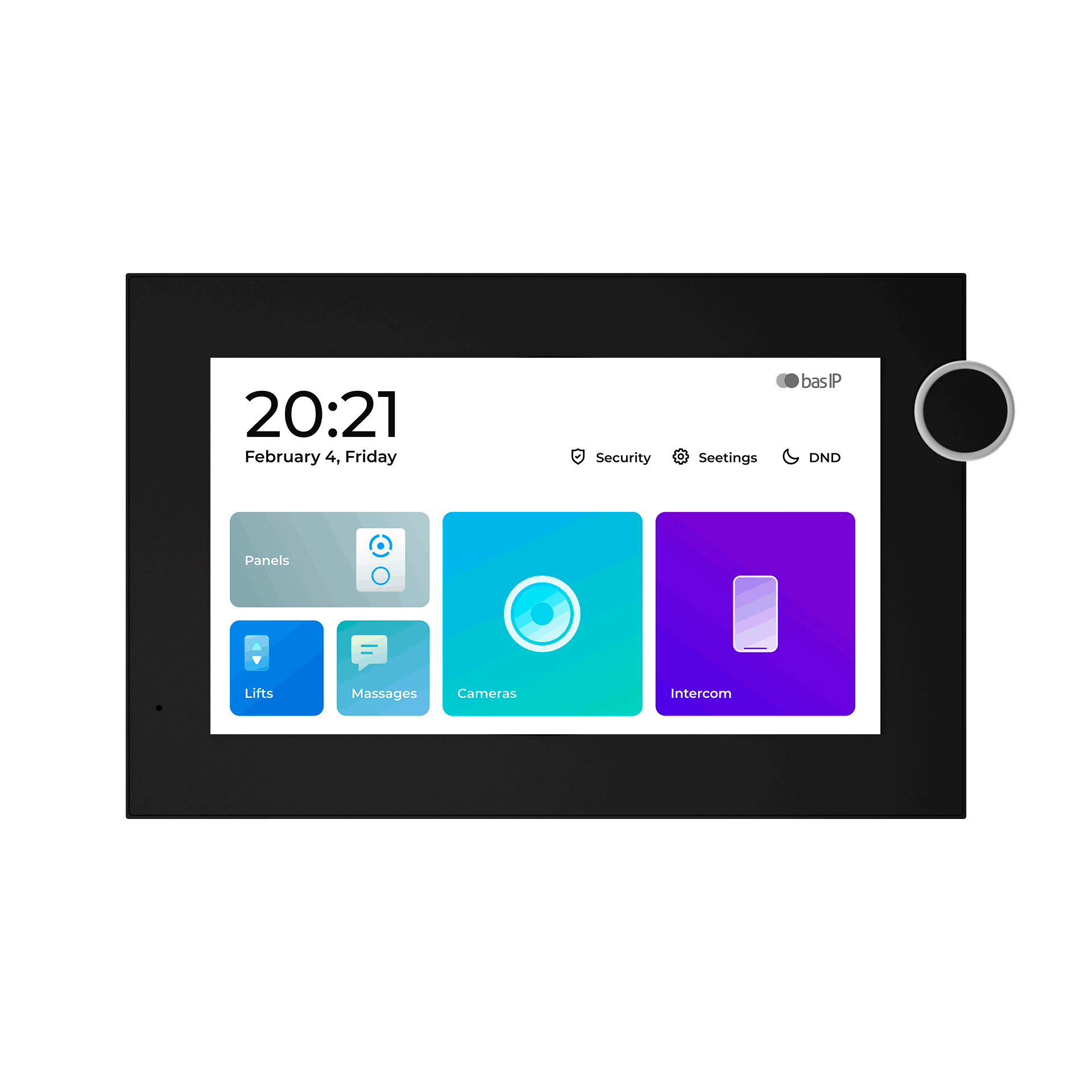

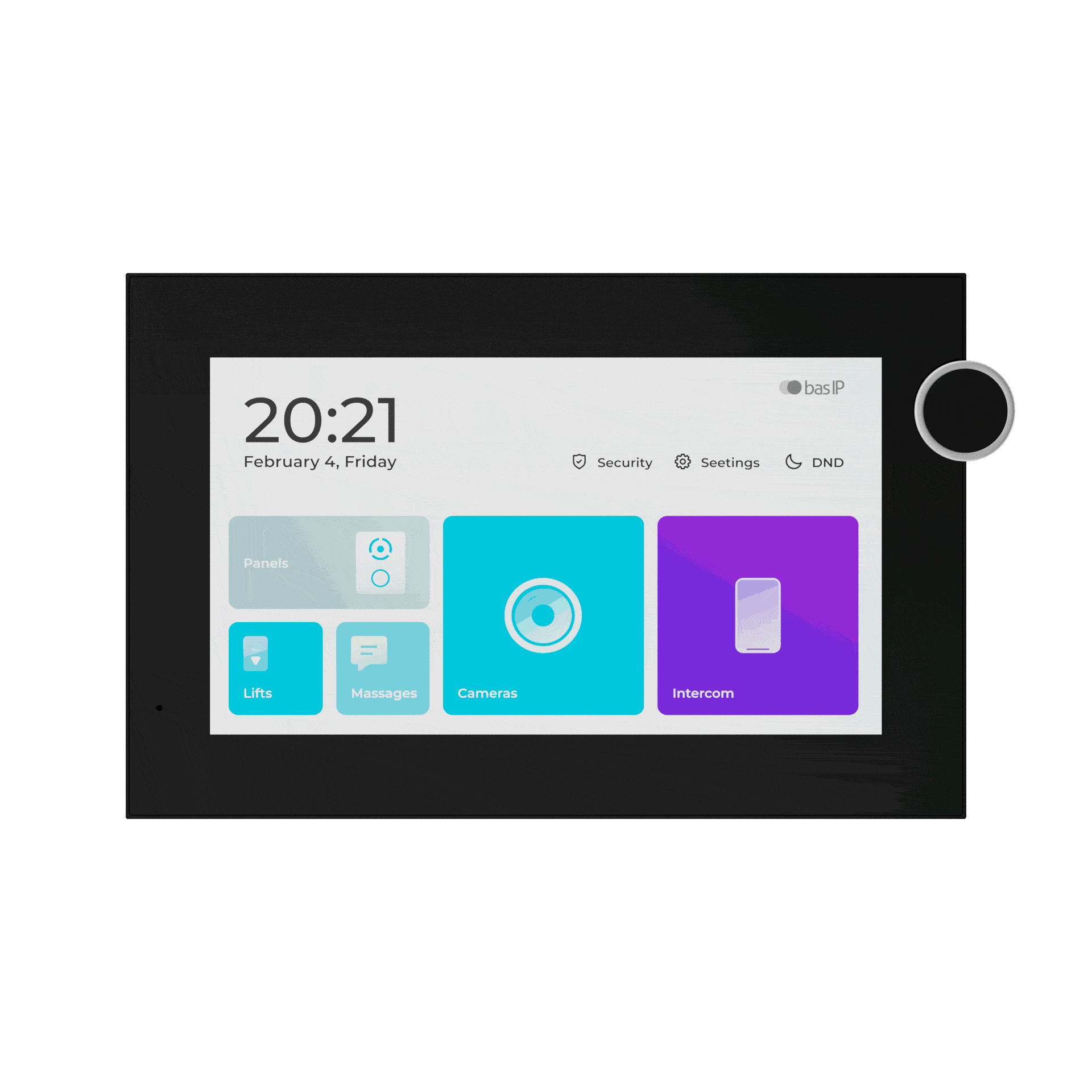

AZ-07LL

SPECIFICATIONS:

Display: 7” TFT LCD (capacitive touchscreen)
Screen resolution: 800 x 480
Built-in camera: No

Power: PoE and + 12 V DC (PSU not included)
Power consumption: 6 W, standby 2.5 W
Dimensions: 195 x 127 x 27 mm
Colors: Black / White
Body: Plastic
Installation Type: Wall mount

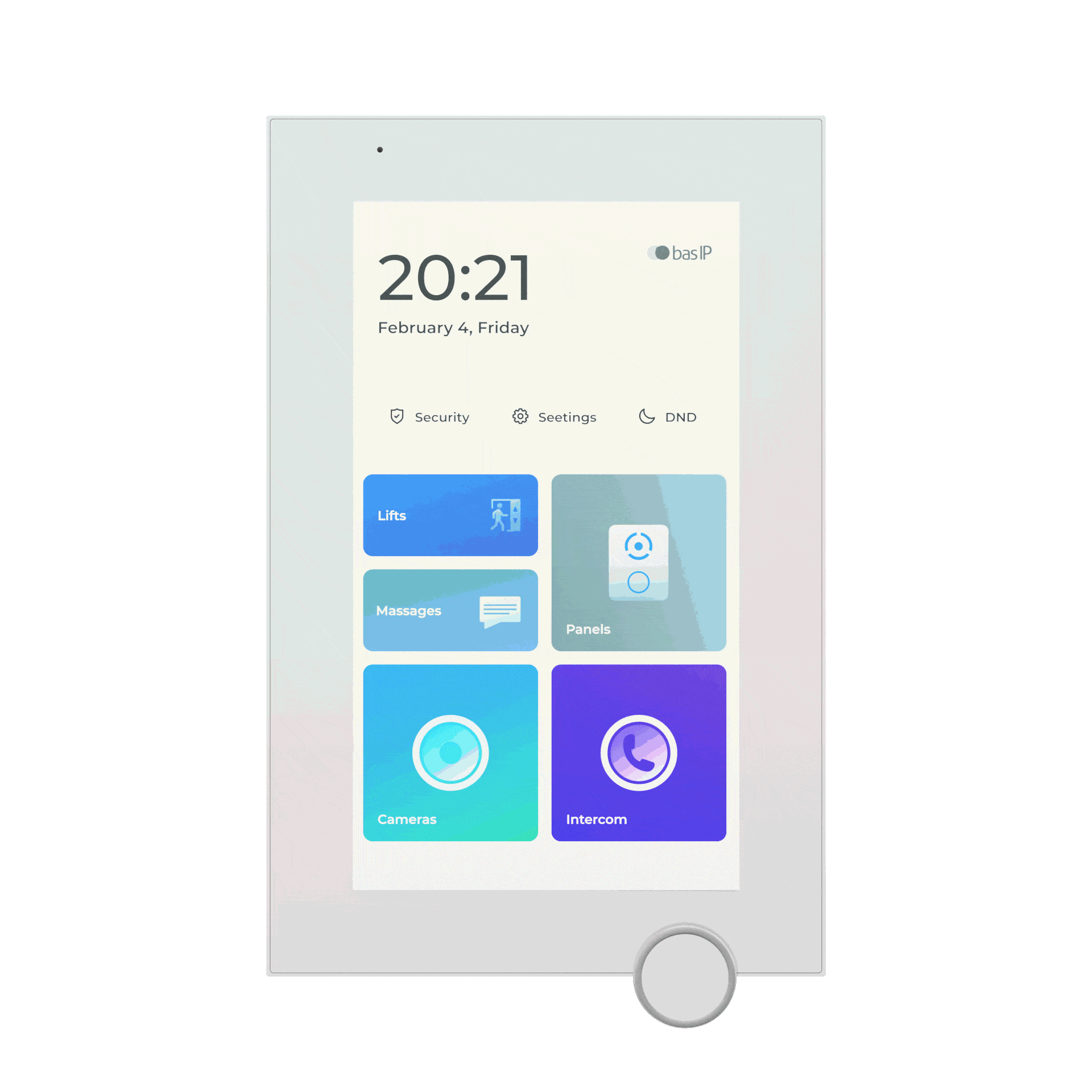

Mounting options: Horizontal and vertical

Network connection: Ethernet wire 8P8C
Number of individual panels: Up to 9 panels
Number of multiapartment panels: Up to 9 panels
Connection of additional monitors: Up to 8 monitors
Additional connectors: SD card slot (SDHC)
Memory function: Record photo into internal memory (64 photo)
Interface: Multi-language graphical and WEB interface
Number of IP cameras: Up to 8 cameras

Intercom type: Audio Intercom, no built-in camera
Support of receiving messages: Yes
Select the type of screensaver in standby mode: Single IP camera live viewing
Do Not Disturb: Yes, customizable by time
Silent mode: Yes, customizable by time
Software update: From the web interface; From BAS-IP updates server
