AV-09KFBI
HighTech4 Corp
HighTech4 Corp
IP Video Intercom & Access Control Systems
BAS-IP AV-09KFBI Door Entry Panel with mechanical keypad for multi-tenant access control.
BAS-IP AV-09KFBI Door Entry Panel with mechanical keypad for multi-tenant access control.
BAS-IP AV-09KFBI IP intercom panel with concierge call button for multi-family buildings.

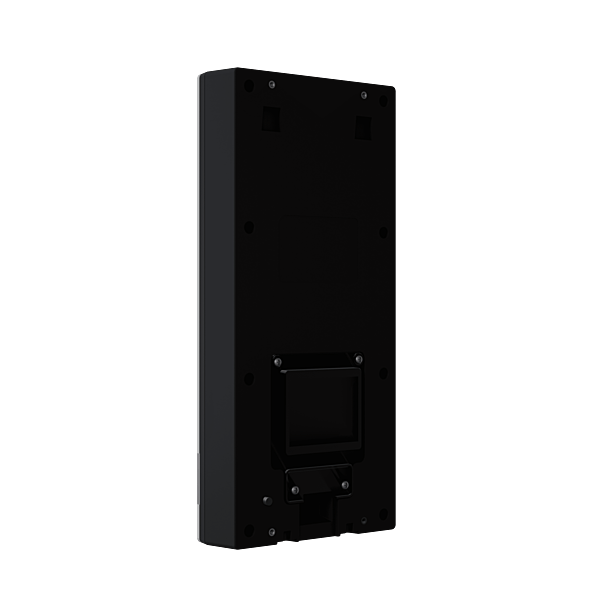

BAS-IP AV-09KFBI door entry panel showing the rear housing and connection area.
BAS-IP AV-09KFBI black door entry panel showing its side profile and housing design.
BAS-IP AV-09KFBI silver door entry panel with mechanical keypad for access control.
BAS-IP AV-09KFBI silver IP intercom panel showing its side profile and finish.

AV-09KFBI

$948.00
Out of stock Out of stock

The BAS-IP AV-09KFBI is an IP video intercom entrance panel built for apartment buildings, offices and shared entrances. It has built-in face recognition and multi-factor authentication, so a property can combine face, mobile key, PIN, card and QR code access in one panel. A backlit mechanical keypad, clear status indicators and an induction loop output make it easy to use for everyone, including hearing-impaired visitors and residents.

It is IP65 and IK07 rated for outdoor entrances, works from -40°F to +149°F, and runs on PoE or 12V DC. Wiegand, ONVIF, SIP 2.0 and Open API connect it to third-party access control, cameras and building systems


Color
Quantity
Add to Cart
Product Details

Key features

  • Built-in face recognition with multi-factor authentication
  • 2 MP Full HD camera with 110° horizontal viewing angle
  • Backlit mechanical keypad and clear status indicators
  • Opens by face, UKEY mobile key, QR code, PIN, RFID card, license plate or BAS-IP Link app
  • Induction loop output for hearing-impaired users
  • Powered by PoE (IEEE 802.3af) or 12V DC
  • IP65 and IK07 protection, rated -40°F to +149°F
  • Wiegand output (26 to 128 bits), ONVIF, SIP 2.0, RTSP and Open API

Technical specifications

Camera and video

Camera
1/2.8" IP camera, 2.0 MP
Resolution
Full HD (1080p)
Viewing angle
110° horizontal

Access and accessibility

Unlock methods
Face recognition, BAS-IP UKEY mobile access (Bluetooth, NFC), QR code, PIN code, RFID card, license plate recognition, BAS-IP Link app
Keypad
Backlit mechanical keypad
Status indicators
Visible feedback during calling and access
Hearing-impaired support
Induction loop output
Calling
Apartment selection and resident calling for multi-tenant entrances

Power, installation and environment

Power supply
+12V DC or IEEE 802.3af PoE
Power consumption
6.5 W (3.8 W in standby)
Protection
IP65, IK07
Operating temperature
-40°F to +149°F (-40°C to +65°C)
Mounting
Surface mount (standard); flush mount optional
Panel dimensions
4.2 × 9.4 × 1.4 in (106 × 240 × 34.5 mm)
Optional accessories
BR-AV9 stainless surface mount bracket, BF-AV09 flush mount bracket, rain cover bracket
Colors
Black, silver
Warranty
3 years (36 months)

Integration and software

Video and calling
SIP 2.0, RTSP, ONVIF
Access control output
Wiegand, 26 to 128 bits
Open API
Yes, for third-party integrations
Elevator integration
Via EVRC-IP (compatible configurations)
Expansion modules
SH-42, SH-12 (depending on project)
Management
BAS-IP Link app and Link software

Frequently asked questions about the BAS-IP AV-09KFBI

Does the AV-09KFBI have built-in face recognition?

Yes. Face recognition is built in and can be combined with a PIN, card, QR code or mobile key for multi-factor authentication.

How can residents and visitors open the door?

By face recognition, UKEY mobile key, QR code, PIN on the keypad, RFID card, license plate recognition or the BAS-IP Link app.

Does it need PoE, or can it run on 12V DC?

Either one. It accepts IEEE 802.3af PoE or +12V DC, which makes cabling and installation planning easier.

Can it be installed outdoors?

Yes. It is rated IP65 for dust and water and IK07 for impact, and it operates from -40°F to +149°F. Surface mounting is standard, and flush mounting is available with the optional BF-AV09 accessory.

Does it support hearing-impaired users?

Yes. It has an induction loop output, a backlit keypad and clear status indicators.

Does it work with third-party access control, cameras and elevators?

Yes. It has Wiegand output (26 to 128 bits), ONVIF, SIP 2.0, RTSP and Open API. Elevator integration is available through EVRC-IP in compatible setups.
