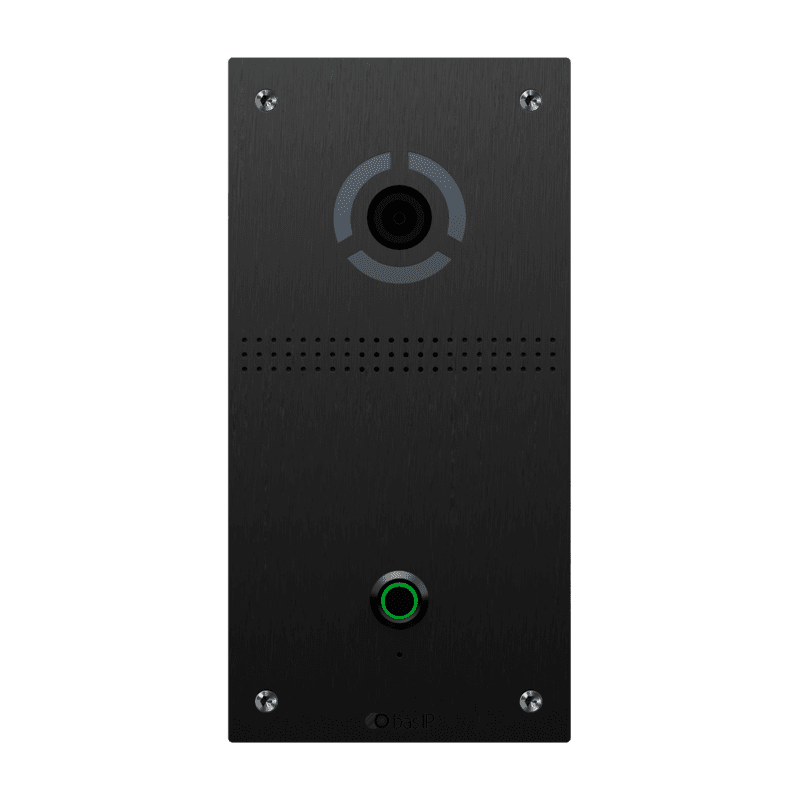

BAS-IP AV-04FD – Flush-Mount IP Video Entrance Panel
The BAS-IP AV-04FD is a vandal-resistant IP video entrance panel designed for flush-mount installation at residential and commercial entrances. It features a 2 MP camera with 720p HD video, full-duplex audio, and six LEDs for night illumination. Its IP65-rated aluminum housing provides reliable outdoor protection, while customizable engraving allows you to add a name, logo, or entrance designation. With PoE connectivity, Wiegand integration, SIP support, and Open API, the AV-04FD offers flexible integration with professional video intercom and access control systems. Additional Wiegand identifier formats are supported through the optional SH-12 module.
Key Features & Benefits
2 MP HD Camera: 720p video with a 100° horizontal viewing angle.
Night Vision: Six built-in LEDs and 0.01 lux minimum illumination.
Flush-Mount Installation: Clean, integrated appearance for building entrances.
Vandal-Resistant Construction: Aluminum housing with IP65 weather protection and IK09 impact resistance.
Custom Engraving: Option to add individual text or a logo through the service center.
Flexible Door Release: Unlock through an indoor monitor, QR code, guest link, BAS-IP app, or API.
System Integration: Wiegand input, SIP P2P, built-in relay, and Open API.
PoE Connectivity: Supports PoE or 12V DC power.
Technical Specifications
CAMERA & VIDEO
Image Sensor: 1/4-inch
Resolution: 2 MP
Video Output: 720p HD (1280 × 720), H.264 Main Profile
Viewing Angle: 100° horizontal
Night Illumination: 6 LEDs
Minimum Illumination: 0.01 lux
AUDIO & COMMUNICATION
Audio Mode: Full-duplex
Call Button: 1 mechanical button
Communication Protocol: SIP P2P
ACCESS CONTROL & INTEGRATION
Door Release: Indoor monitor, QR code, guest link, BAS-IP Intercom app, API
Access Control Integration: Wiegand
Wiegand Input: 26-bit
Additional Identifier Formats: Supported with the optional SH-12 module
Additional Features: Built-in relay, Open API, BAS-IP Link software support
CONNECTIVITY & POWER
Network Connection: Ethernet
Power Supply: PoE or 12V DC
Power Consumption: 6.5 W
Standby Consumption: 2.5 W
PROTECTION & CONSTRUCTION
Housing: Aluminum
Protection Rating: IP65
Impact Resistance: IK09
Operating Temperature: -40°F to +149°F
Operating Humidity: 0%–89%
INSTALLATION & DIMENSIONS
Installation Type: Flush mount
Panel Dimensions: 3.74 × 7.48 × 1.06 inches
Installation Bracket Dimensions: 3.35 × 7.09 × 1.77 inches
