Multi-apartment entrance panel with connectivity two-wire system.

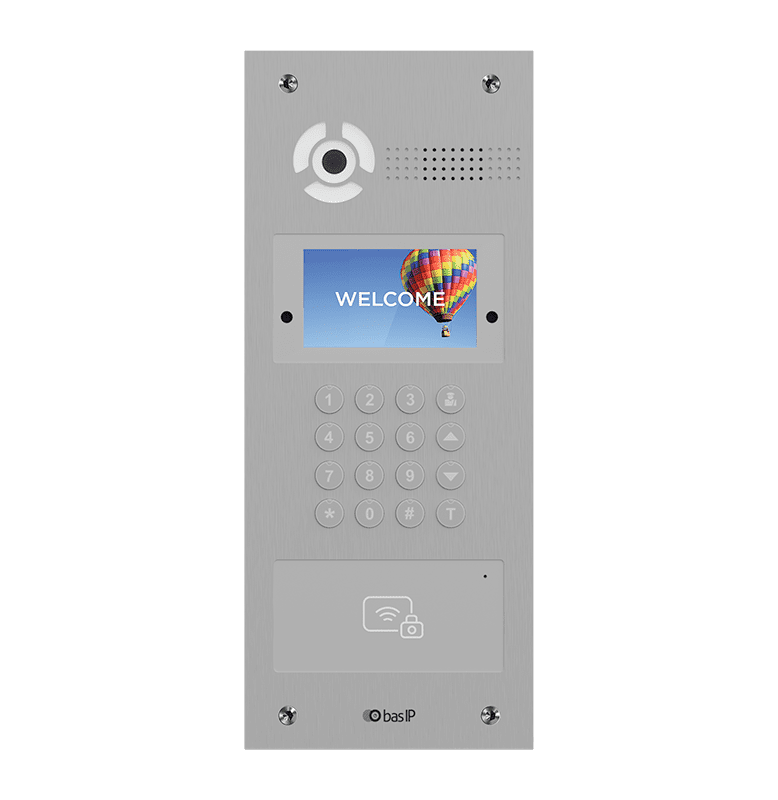

AA-07FB is a multi-apartment metal entrance panel with face recognition and support for BAS-IP UKEY mobile access.
Add to Cart
Product Details
AA-07FBC is a multi apartment panel that made it possible to make calls from this device both to two-wire digital intercom systems of the Laskomex type and to IP intercoms.

BAS-IP hybrid panels support simultaneous operation with 3 systems: directly with the BAS-IP digital IP system, with VoIP telephony systems (operating via SIP) and the Laskomex digital two-wire system (RAIKMANN, RAINMAN, MARSHAL, KEIMAN, FILMAN, XVOICE).


Panel type: Multi-apartment
Display: 4,3“ TFT, color, with backlight
Resolution: 2,0 Мp
Сamera angle: 110° (horizontal)
Output video: 1080p (1920×1080), H.264 Main Profile
Night backlight: 6 LEDs
Light sensitivity: 0.01 Lux
IK-Code: IK07
Protection class: IP65
Working temperature: -40 – +65 °С
Operating humidity: 0% – 86%
Storage Humidity: 0% – 60%
Power consumption: 6,5 W, in standby – 3,6 W
Power supply: +12 V DC (+8% -4%)
Case: Aluminum
Colors: Silver
Dimensions: 155×375×55 mm
Installation: Flush mounting, wall mounting with BR-AA
Keyboard: Mechanical buttons with backlight
Box dimensions: 431×200,5×97 mm
Gross weight: 2,68 kg
Interface: Multilanguage, WEB- interface
Lock opening:
• By means of a monitor
• Face Recognition Identification
• By QR code
• By guest link
• By Pin
• By access card
• By license plates
• The BAS-IP Link app
• The BAS-IP Intercom app
• The BAS-IP UKEY app
• From API
Support two-wire system
Access control:
• Face Recognition
• UKEY (EM-Marin/ MIFARE®/NFC/Bluetooth)
• Multi-factor authentication
Supported standards:
• BLE (Bluetooth Low Energy): 2,45 GHz Bluetooth 4.x, Bluetooth 5.x.
• Mifare®, 13,56 MHz ISO14443A: Mifare®Standard, Mifare®Hi-Memory, Mifare®Ultralight, Mifare®Classic 1K/4K, Mifare®Classic 7UID, Mifare® Plus SL1 and SL3
• NFC, 13,56 MHz: ISO 14443/15693
• Cards 125 kHz: ASK and FSK
Reading range:
• NFC, Mifare cards and 125 kHz cards – up to 5 cm
• BLE – adjustable 10 cm – 10 m
Calling the lift to the floor: Yes
Face recognition Identifiers: 10 000 faces
Identifiers in the panel memory: 20 000
Onvif (Profile S): Yes
Integration with ACS: Output WIEGAND-26
Supported Wiegand types: 26, 32, 34, 37, 40, 42, 56, 58, 64
Quick-dial buttons: Concierge call button
Number of ringtones: 4 polyphonic ringtones
• Separate password for settings
• WEB-interface
• Software Link support
• Built-in relay
• Open API
