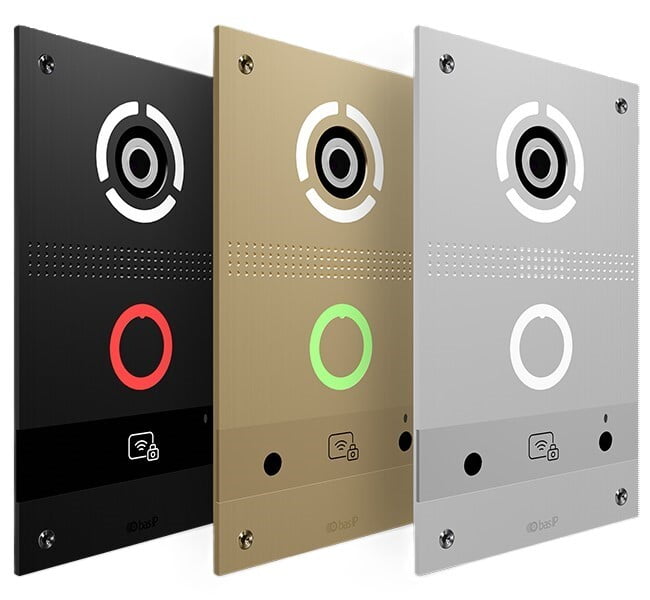

AV-08FBL
The AV-08FBL Individual Entrance Panel combines advanced security technology with a premium architectural design. Featuring a durable milled aluminum body with anodized coating, it offers a modern appearance while ensuring reliable performance in demanding environments.
Equipped with a 2MP HD camera with a 120° horizontal wide-angle view, the panel provides clear visitor identification and enhanced entrance monitoring. Its advanced face recognition technology and multi-factor authentication allow secure access through face ID, RFID cards, QR codes, BAS-IP UKEY mobile credentials, guest links, and vehicle plate recognition.
Designed for smart buildings, the AV-08FBL supports mobile access, SIP communication, Wiegand integration, API connectivity, and lift calling functions. With support for up to 20,000 identifiers and 10,000 face profiles, it provides a scalable access solution for residential communities, offices, and commercial properties.
Combining security, convenience, and elegant design, the AV-08FBL is an ideal choice for modern smart entrance systems.
Key Features
- CameraDual HD cameras at 2MP resolution
- View AngleWide 120
- Door entry methodsFace-Recognition BAS-IP_UKEY Mobile_App QR_Code PIN_Code Access_Card Guest_Link License_Plate API
- Users supportsUp to 20000 access identifiers Up to 10000 face recognition users
General | Physical
- Touch ScreenNo
- Operating SystemLinux
- Front PanelAluminum
- Power Supply12V/3A DC
- Camera1/3" IP Camera 2 MP
- Wiegand PortSupport
- RS485 PortSupported
- Enthernet PortRJ45 10/100 Mbps Ethernet
- Relay OutBuilt-in relay for door lock control
- IP/IK RatingIP65/IK07
- InstallationSurface or flush Mounting
- Working Temperature-40°C to +65°C
Video
- Video CodecH.264
- Video Resolution1920 × 1080 (1080p)
- Viewing Angle120° Horizontal
- Max. Image Transfer RateUp to 25–30 fps (network dependent)
Audio
- Audio CodecG.711 / G.729 (SIP based communication)
- DTMFSupported
- MicrophoneBuilt-in noise reduction microphone
- SpeakerBuilt-in speaker with echo cancellation
Networking
- ProtocolSIP 2.0 ONVIF Profile S TCP/IP RTSP HTTP/HTTPS Open API support
